LS MT122

Last Updated: June 2024

Overview

The LS MT122 is a sub-compact utility tractor that features a 4WD chassis with a Yanmar 3TNV76F diesel engine. This tractor offers a hydrostatic transmission with infinite forwards and reverse gears, allowing for a flexible and smooth operation. With a 3-cylinder, 68.1 cubic inch, liquid-cooled engine rated at 21.5 horsepower and 3000 RPM, the MT122 is equipped for various small-scale tasks. The power steering adds to the comfort and ease of maneuverability. This model is designed to operate with both lawn/turf and industrial-wheel configurations, providing versatility for different working conditions. At an operating weight of 1433 pounds and dimensions of 97 inches in length, 47 inches in width, and 87 inches in height (with ROPS), the LS MT122 is a compact and capable machine suitable for a range of light-duty applications.

Key Specifications

Category: Utility, Sub-Compact

Power Output: 21.5

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1433

Fuel Type: Diesel

Image Gallery

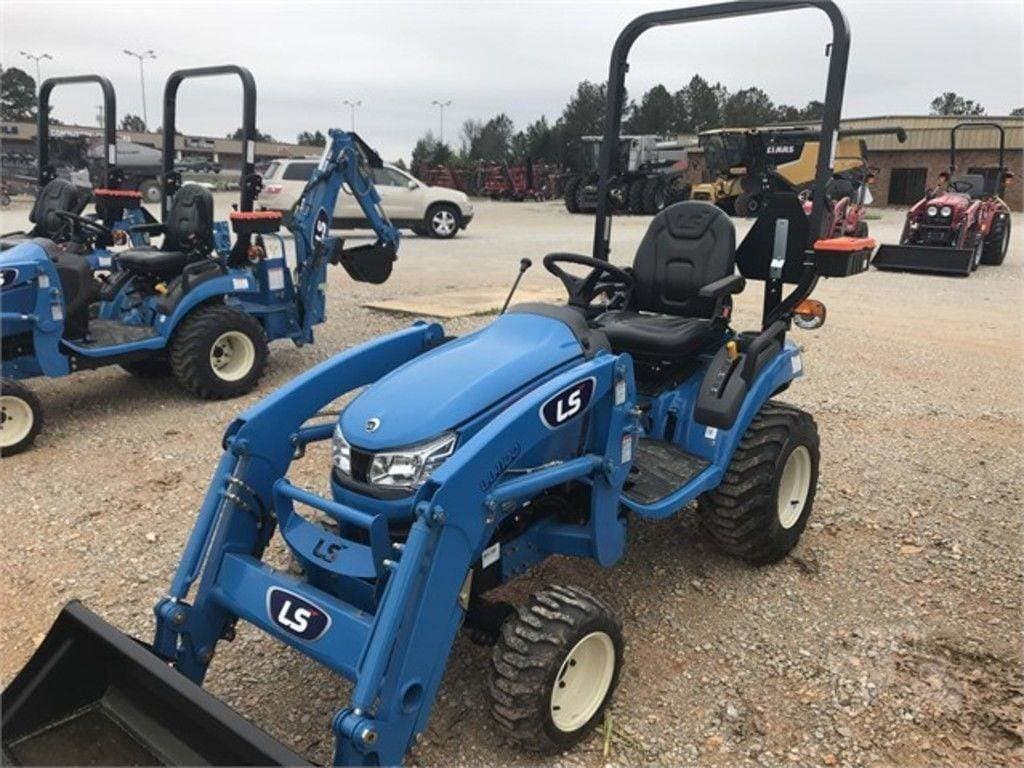

LS MT122 Tractor

LS MT122 vs. Similar Tractors

Power Output

Below Average

Greater than 11% of similar tractors.

Operating Weight

Below Average

Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: 3TNV76F
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 68.1
Bore (in): 3
Stroke (in): 3
Rated RPM: 3000
Power Output (hp): 21.5

Transmission

Type: Hydrostatic
Forward Gears: Infinite (assumed, as "infinite (2-range) forward and reverse" is specified)
Reverse Gears: Infinite (assumed, as "infinite (2-range) forward and reverse" is specified)
Total Gears: -

Dimensions

Length (in): 97
Width (in): 47
Height (in): 87 (ROPS)
Operating Weight (lb): 1433

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf (optional: Industrial)
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
