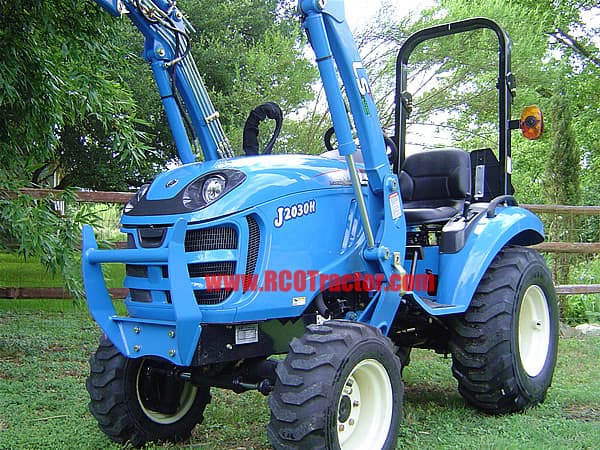

LS J2030H

Last Updated: June 2024

Overview

The LS J2030H is a machine that embodies practicality and reliability. Suiting a range of applications, the hydrostatic steering system, powered by a flow of 2.7 gpm (10.2 lpm), provides ease of maneuverability. At the heart of the J2030H is a robust 27 hp Mitsubishi S3L2 diesel engine featuring three cylinders and a displacement of 80.4 cubic inches. This engine, complemented by a hydrostatic transmission with infinite forward and reverse gears in two ranges, is optimized for a variety of tasks, with a rated RPM of 2700. This tractor offers a choice of tire types for lawn/turf or industrial applications and is dimensioned at 103 inches long, 44.9 inches wide, and has a height of 85 inches with the ROPS extended. It weighs 1587 lbs and is engineered for longevity and efficiency in the demanding environments in which it operates.
Show more...

Key Specifications

Power Output: 27

Transmission: Hydrostatic

Operating Weight: 1587

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
80.4
Bore (in)
3.071
Stroke (in)
3.622
Rated RPM
2700
Power Output (hp)
27

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
103
Width (in)
44.9
Height (in)
85 (ROPS)
Operating Weight (lb)
1587

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
23 (Lawn/Turf and Industrial)
Front Tire Width (in)
8.5 (Lawn/Turf and Industrial)
Rear Tire Diameter (in)
33 (Lawn/Turf and Industrial)
Rear Tire Width (in)
12 (Lawn/Turf), 12.5 (Industrial)
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/Turf, Industrial
Manufacture - End Year
-
Hitch Type
I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
