LS i3030H

Last Updated: June 2024

Overview

The LS i3030H Compact Utility Tractor is designed with a 4x4 MFWD 4WD chassis, providing added traction and power for a variety of tasks. The tractor is equipped with a hydrostatic power steering system that eases maneuverability and a hydrostatic transmission allowing for infinitely variable speed adjustment. The heart of the i3030H is its Mitsubishi S4L engine; a 4-cylinder, liquid-cooled diesel engine that has a displacement of 91.5 cubic inches and provides a gross horsepower of 28.5 at 2600 RPM. The tractor features multiple tire options suited for agricultural, lawn, or industrial purposes. Its physical dimensions make it a suitable size for diverse operations, from farming to landscaping. Overall, the LS i3030H is built to offer reliable performance, ease of use, and versatility to its operators.

Key Specifications

Category: Utility

Power Output: 28.5

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2780

Fuel Type: Diesel

Image Gallery

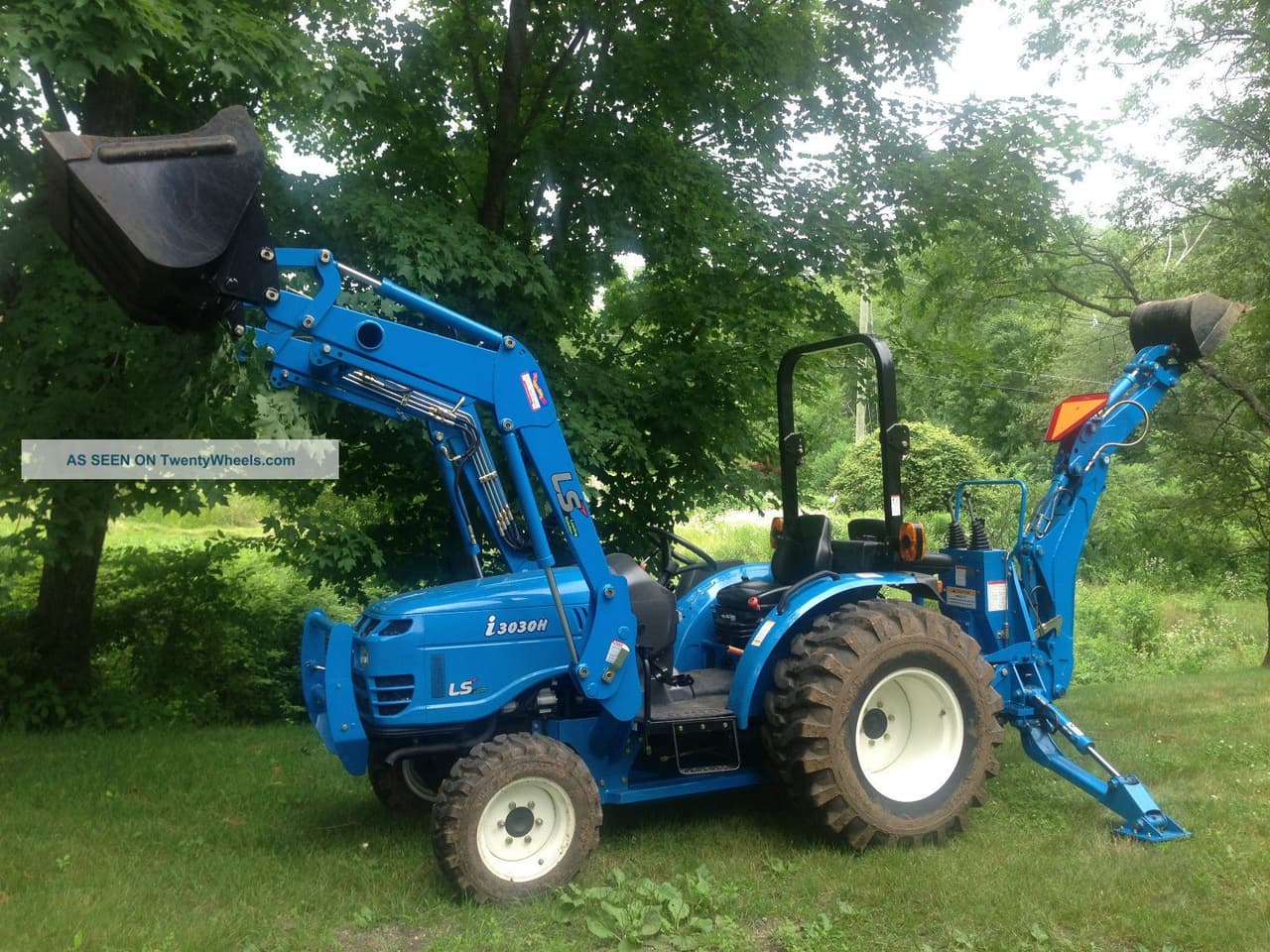

LS i3030H Tractor

LS i3030H vs. Similar Tractors

Power Output

Below Average

Greater than 23% of similar tractors.

Operating Weight

Below Average

Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: S4L
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 91.5
Bore (in): 3.07
Stroke (in): 3.09
Rated RPM: 2600
Power Output (hp): 28.5

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 117.6
Width (in): 53.9
Height (in): 91.2 (ROPS)
Operating Weight (lb): 2780

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag): Front: 7-14, Rear: 11.2-24 | Lawn/turf front: 25x8.5-14, Lawn/turf rear: 43x14-20 | Industrial front: 25x8.5-14, Industrial rear: 43x16-20.4
Manufacture - End Year: -
Hitch Type: I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
