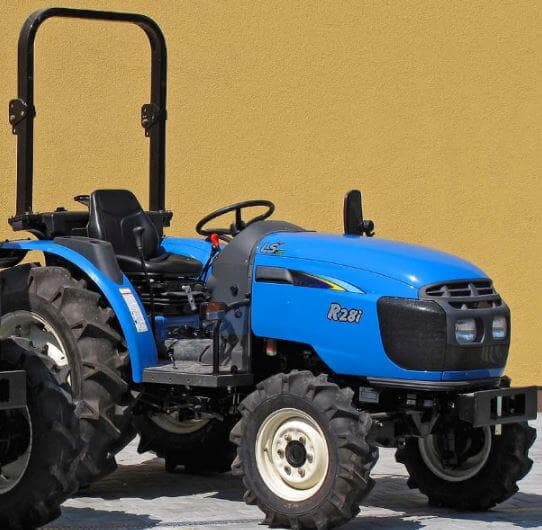

LS i28

Last Updated: June 2024

Overview

The LS i28 Tractor is a compact utility vehicle designed to deliver reliable performance and versatility. With its 4-wheel drive capabilities provided by a 4x4 MFWD chassis, this model offers enhanced traction for various terrain conditions and tasks. It features a 28.2 horsepower Mitsubishi S4L diesel engine which is liquid-cooled to maintain optimal thermal performance even under extended operation. The engine supports a rated RPM of 2600 and has a displacement of 91.5 cubic inches. Steering is facilitated by a hydrostatic power system ensuring smooth maneuverability. It operates on a 12-speed synchronized shuttle transmission system, allowing precise control when moving forward or reverse. This model's stature includes a 65.4-inch wheelbase, a length of 117.6 inches, a width of 52.1 inches, and a height of 91.2 inches with the ROPS (Rollover Protection Structure) deployed, weighing 2811 pounds in total operating weight. It is equipped with electric start and meets Interim Tier 4 emissions standards. The LS i28 offers ample size and power for a variety of tasks without sacrificing the convenience of a compact frame.
Show more...

Key Specifications

Category: Utility

Power Output: 28.2

Transmission: Synchronized shuttle / Hydrostatic

Drive Type: 4WD

Operating Weight: 2811

Fuel Type: Diesel

LS i28 vs. Similar Tractors

Power Output
Below Average
Greater than 23% of similar tractors.
Operating Weight
Below Average
Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4L
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
91.5
Bore (in)
3.07
Stroke (in)
3.09
Rated RPM
2600
Power Output (hp)
28.2

Transmission

Type
Synchronized shuttle / Hydrostatic
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
117.6
Width (in)
52.1
Height (in)
91.2
Operating Weight (lb)
2811

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
