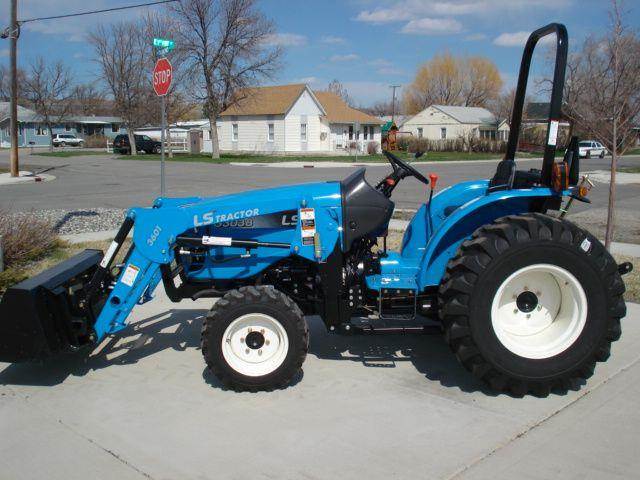

LS G3033

Last Updated: June 2024

Overview

The LS G3033 is a compact utility tractor designed for a variety of tasks. Equipped with a 4x4 MFWD 4WD chassis and hydrostatic power steering, it can maneuver in a range of conditions and operations. Under the hood, it's powered by a 33 hp LS L3BL 3-cylinder liquid-cooled diesel engine, with a bore and stroke of 3.465x4.134 inches and a displacement of 116.9 cubic inches. The tractor achieves a gross engine power output at 2600 rpm, suitable for demanding tasks while ensuring efficiency. The transmission is a 12-speed synchro shuttle, facilitating ample speed choices for precision work. The LS G3033 offers hydrostatic power steering for smooth operation, and the wheelbase measures 65.9 inches with a weight of 2690 lbs, providing stability. The length, width, and height of the tractor are 117.6, 42.6, and 90.2 inches respectively, assuring a compact footprint with a robust stature thanks to its ROPS operator station type.
Show more...

Key Specifications

Category: Utility

Power Output: 33

Transmission: synchro shuttle

Drive Type: MFWD 4WD

Operating Weight: 2690

Fuel Type: diesel

LS G3033 vs. Similar Tractors

Power Output
Below Average
Greater than 29% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
LS
Model
L3BL
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
3
Displacement (ci)
116.9
Bore (in)
3.465
Stroke (in)
4.134
Rated RPM
2600
Power Output (hp)
33

Transmission

Type
synchro shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
117.6
Width (in)
42.6
Height (in)
90.2
Operating Weight (lb)
2690

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag): Front: 7-14, Rear: 11.2-24 | Lawn/turf: Front: 25x8.5-14, Rear: 41x14-20 | Industrial: Front: 25x8.5-14, Rear: 43x16-20
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
