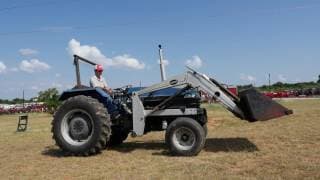

Long 2610

Last Updated: June 2024

Overview

The Long 2610 tractor is a versatile and durable machine appropriate for a variety of agricultural tasks. It is powered by a 4-cylinder UTB/Universal Uzina diesel engine with a displacement of 219 cubic inches. The engine operates at 2400 RPM and has a liquid-cooling system to maintain optimal temperature during heavy operations. For starting, it relies on a 12-volt electric system with pre-heating to address cold start conditions. The tractor's transmission is partially synchronized, offering 8 forward and 2 reverse gears, with a dry disc clutch facilitating power transmission. It features a three-point hitch system at the rear, with a category II/I configuration. The tractor's operating weight stands at 4570 lbs, and for the hydraulic needs, it boasts an open-center system. This model is designed to offer reliability in various field conditions with the option of choosing between 2WD and 4WD configurations.
Show more...

Key Specifications

Transmission: Partially Synchronized

Drive Type: 2WD / 4WD Optional

Operating Weight: 4570

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
UTB/Universal
Model
Uzina
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
4
Displacement (ci)
219
Bore (in)
4.016
Stroke (in)
4.331
Rated RPM
2400
Power Output (hp)
-

Transmission

Type
Partially Synchronized
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
4570

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD / 4x4 MFWD 4WD
Drive Type
2WD / 4WD Optional
Steering Type
-
Coolant Capacity (qts)
17
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard Tires (ag)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open Center
