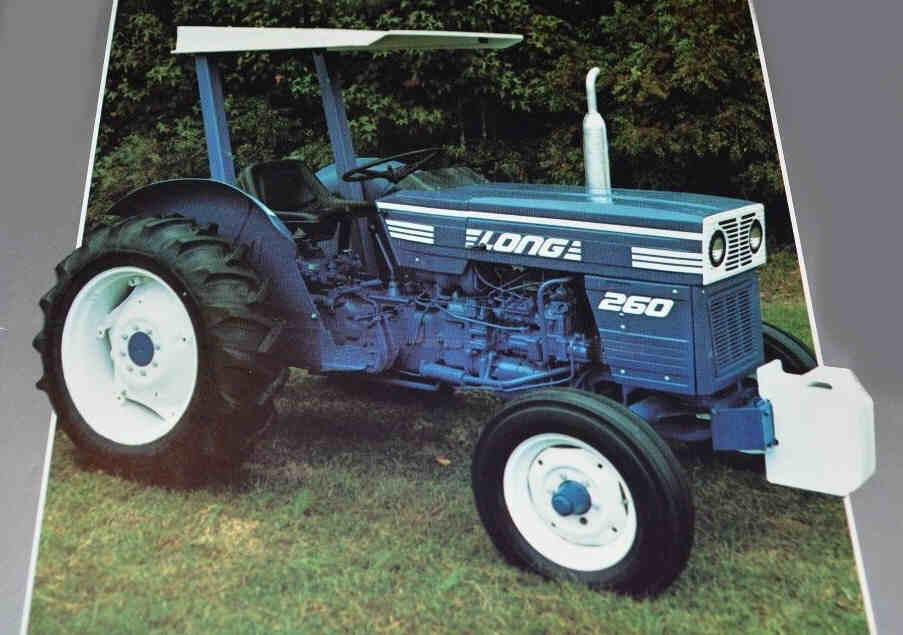

Long 260

Last Updated: June 2024

Overview

The Long 260 is a utility tractor that was manufactured by Long. It features a manual steering type and a simple but robust sliding gear/constant mesh transmission system, consisting of 6 forward and 2 reverse gears. The heart of the Long 260 is a 2-cylinder, liquid-cooled, diesel engine made by UTB/Universal, with a displacement of 95 cubic inches and rated at 2400 RPM. The engine is paired with an oil bath-type air cleaner and has the option of pre-heating feature for cold starts. The tractor sits on a wheelbase of 70.8 inches and measures 108.8 inches in length and 65.9 inches in width, with an operating weight of 3270 lbs. This opens up a range of agricultural tasks suitable for a tractor of its size and capabilities. Despite its simplicity, the Long 260 was built to withstand tough working conditions.
Show more...

Key Specifications

Category: Utility

Transmission: Sliding gear/constant mesh

Operating Weight: 3270

Fuel Type: Diesel

Long 260 vs. Similar Tractors

Operating Weight
Below Average
Greater than 28% of similar tractors.

Technical Specifications

Engine

Manufacturer
UTB/Universal
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
95
Bore (in)
3.74
Stroke (in)
4.33
Rated RPM
2400
Power Output (hp)
-

Transmission

Type
Sliding gear/constant mesh
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
108.8
Width (in)
65.9
Height (in)
-
Operating Weight (lb)
3270

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Manual
Coolant Capacity (qts)
8.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open center
