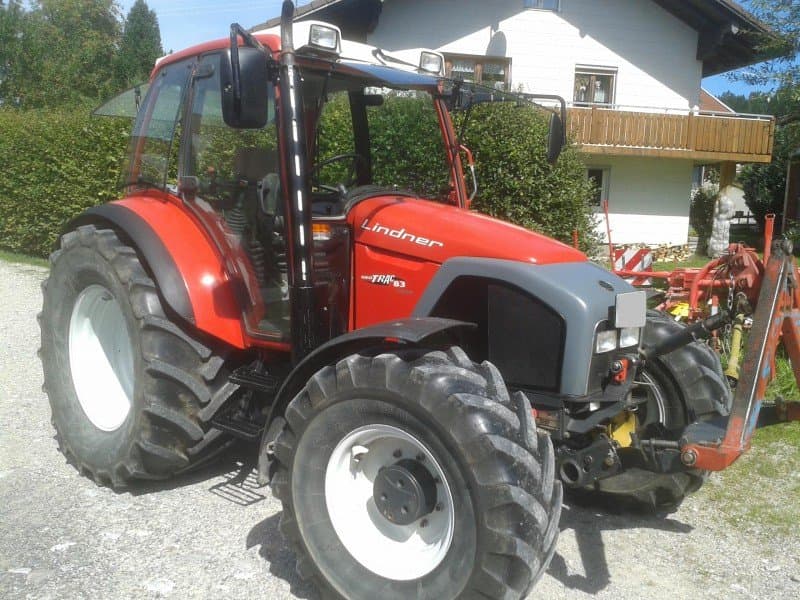

Lindner Geotrac 83

Last Updated: June 2024

Overview

The Lindner Geotrac 83 is a 4WD tractor equipped with a 4-cylinder, 268.5 cubic inches Perkins 1104C-44 turbocharged diesel engine. It generates 80 horsepower at 2200 RPM and produces a torque of 350 lb-ft at 1400 RPM. The chassis configuration is marked by a full-time four-wheel drive (4x4 MFWD 4WD) system which is complemented by a 16-speed transmission with 16 forward and 8 reverse gears. The sturdy build of the tractor is mirrored in its wheelbase of 86.4 inches and a substantial operating weight of 7,365 lbs. It measures 161.8 inches in length, 77.6 inches in width, and has a height of 96.5 inches. Both the front and rear tires are agricultural type with the front being 375/70R20 and the rear being 420/85R30, suggesting a profile suitable for a variety of demanding agricultural tasks. Details such as steering type, operator station type, hydraulic system, among others remain unspecified, but the provided specs highlight a powerful mid-sized tractor that can tackle a wide range of farming duties.
Show more...

Key Specifications

Power Output: 80

Drive Type: 4WD

Operating Weight: 7365

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104C-44
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.134
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
80

Transmission

Type
-
Forward Gears
16
Reverse Gears
8
Total Gears
24

Dimensions

Length (in)
161.8
Width (in)
77.6
Height (in)
96.5
Operating Weight (lb)
7365

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
