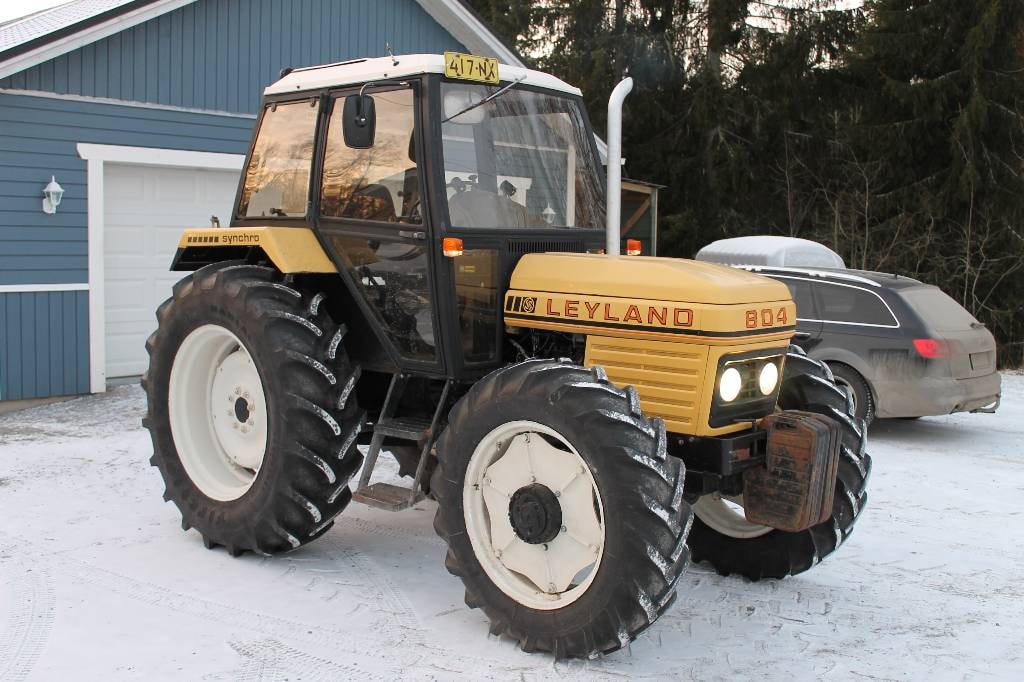

Leyland 804

Last Updated: June 2024

Overview

The Leyland 804 is a utility tractor known for its robust capabilities in various agricultural tasks. Fitted with a Leyland 4/98 TT turbocharged diesel engine, it provides a power output of 82 hp (61.1 kW). The engine's displacement is 230 cubic inches (3.8 L) with a bore and stroke measuring 3.86 inches by 4.92 inches respectively, and operates at a rated RPM of 2200. This tractor features a liquid-cooling system to manage engine temperature efficiently. The Leyland 804 boasts a chassis with 4x4 MFWD 4WD for superior traction and includes power steering to enable easier handling and maneuverability. The transmission is characterized with 9 forward gears and 3 reverse, accommodating a range of speeds for different tasks. Weighing at 6700 lbs (3039 kg), this tractor is built to handle substantial workloads. Having a rear hitch of Category II type, the Leyland 804 can be compatible with a variety of implements. With an electric starter system, the process of ignition is convenient and reliable. Further details about the tractor's tire types and sizes, along with its PTO, hydraulics, and other specific features such as its dimensions and operator station type, remain unknown.
Show more...

Key Specifications

Category: Utility

Power Output: 82

Drive Type: 4WD

Operating Weight: 6700

Fuel Type: Diesel

Leyland 804 vs. Similar Tractors

Power Output
Above Average
Greater than 72% of similar tractors.
Operating Weight
Average
Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer
Leyland
Model
4/98 TT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
230
Bore (in)
3.86
Stroke (in)
4.92
Rated RPM
2200
Power Output (hp)
82

Transmission

Type
-
Forward Gears
9
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
6700

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
