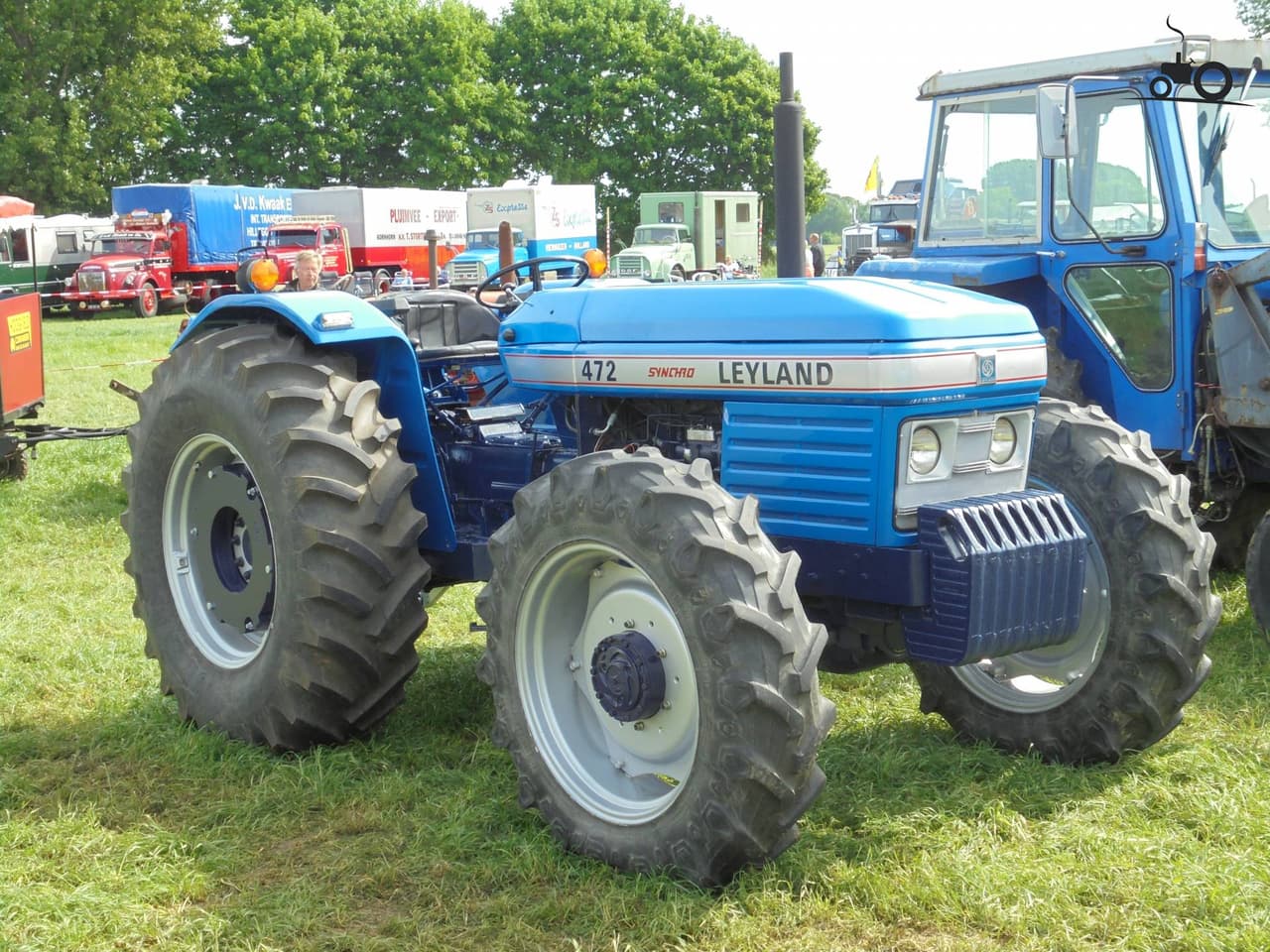

Leyland 472

Last Updated: June 2024

Overview

The Leyland 472 is a 4WD tractor, powered by a Leyland 4-cylinder liquid-cooled diesel engine with a displacement of 230 cubic inches. This tractor operates at a rated RPM of 2200 and has a power output of 71 hp. It features a hydrostatic power steering system and a 9-speed manual transmission, with 9 forward and 3 reverse gears. The tractor rides on a chassis with a front tire size of 12.4-28 inches and a rear tire size of 16.9-34 inches, showing its capability to handle various types of terrain and agricultural tasks. It has a wheelbase of 83.28 inches (211 cm) and measures 134 inches in length and 105.5 inches in height, with an operating weight of 7,410 lbs (3361 kg). The Leyland 472's robust design and 4WD configuration make it suitable for a variety of heavy-duty farming operations.
Show more...

Key Specifications

Power Output: 71

Transmission: Manual

Drive Type: 4WD

Operating Weight: 7410

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Leyland
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
230
Bore (in)
3.858
Stroke (in)
4.921
Rated RPM
2200
Power Output (hp)
71

Transmission

Type
Manual
Forward Gears
9
Reverse Gears
3
Total Gears
12

Dimensions

Length (in)
134
Width (in)
-
Height (in)
105.5
Operating Weight (lb)
7410

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
28
Front Tire Width (in)
12.4
Rear Tire Diameter (in)
34
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
