Leyland 384

Last Updated: June 2024

Overview

The Leyland 384 is a utility tractor that was produced between 1969 and 1971. It features a four-cylinder Leyland 38 TD diesel engine with a displacement of 230.1 cubic inches and a power output of 70 horsepower at 2200 RPM. The tractor has a 10-speed manual transmission with 10 forward gears and 2 reverse gears. It operates on a 2WD chassis and offers manual steering as well as mechanical dry disc brakes. This model can be found with either an open operator station or an optional cab. It has a hydraulic pump flow rate of 7.8 gpm and a hydraulic capacity of 14.9 US gallons. The Leyland 384 stands out for its simple and robust design, tailored to meet the demands of a variety of agricultural tasks.

Key Specifications

Power Output: 70

Transmission: Manual

Drive Type: 2WD

Operating Weight: 5600

Fuel Type: Diesel

Lift Capacity: 4924

Image Gallery

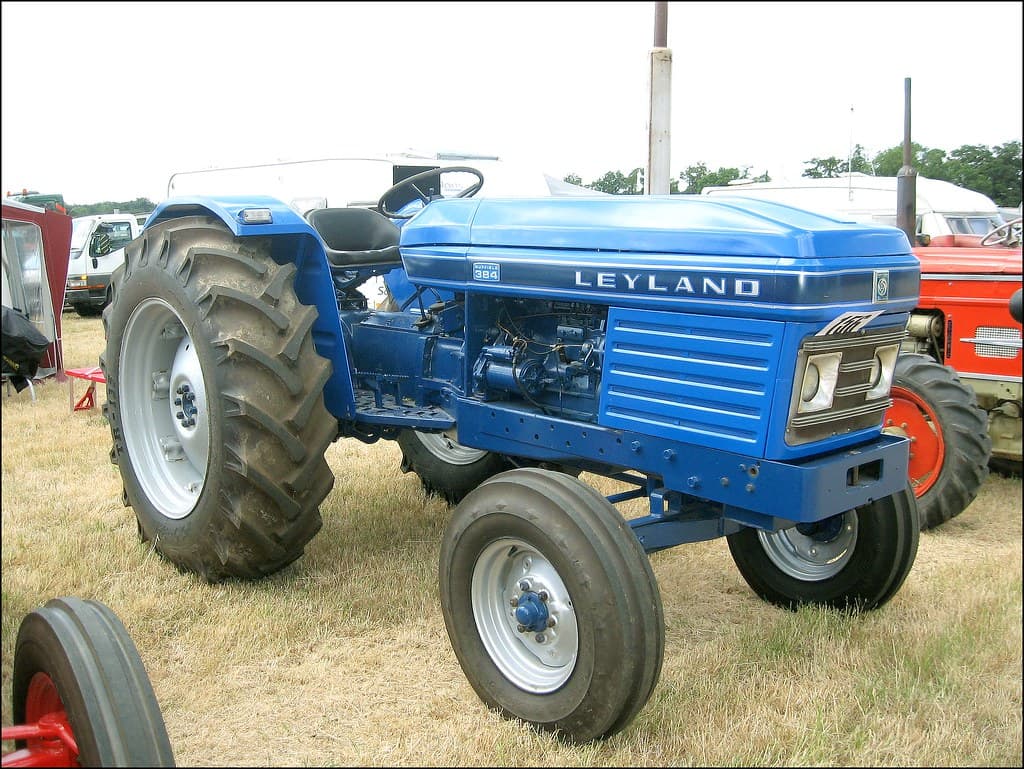

Leyland 384 Tractor

Technical Specifications

Engine

Manufacturer: Leyland
Model: 38 TD
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 230.1
Bore (in): 3.94
Stroke (in): 4.73
Rated RPM: 2200
Power Output (hp): 70

Transmission

Type: Manual
Forward Gears: 10
Reverse Gears: 2
Total Gears: 12

Dimensions

Length (in): 133.9
Width (in): -
Height (in): 97.6
Operating Weight (lb): 5600

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 14.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1971
Hitch Type: -
Hitch Category: II/I
Hitch Position: -
Hitch Capacity (lb): 4924
Operator Station Type: Open operator station or Cab optional
Starter Type: Electric
Brake Type: Mechanical dry disc
Hydraulic System Type: Open center
