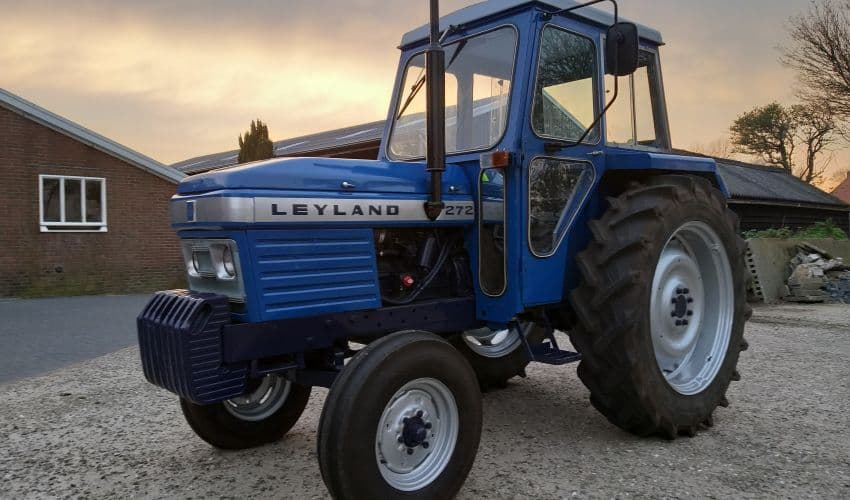

Leyland 272

Last Updated: June 2024

Overview

The Leyland 272 tractor is categorized as a utility vehicle, exhibiting a classic 4x2 2WD chassis and hydrostatic power steering which enhances maneuverability. It is outfitted with a manual transmission boasting 10 forward gears and 3 reverse gears, allowing for a versatile range of speeds to tackle various tasks. The heart of this tractor lies in its 4-cylinder Leyland diesel engine, which is liquid-cooled and offers a respectable power output of 71 hp at 2200 rpm. The engine's displacement is 230 cubic inches, with a bore and stroke measurement of 3.858 and 4.921 inches respectively. The tractor presents substantial operational dimensions and an operating weight of 7500 pounds, ready to manage significant workload demands. The Leyland 272 rides on agricultural tires, with front tires measuring 7.50-16 and rear tires at 18.4-30, suggesting that this tractor is well-suited for a variety of field activities. The rear hitch system is classified as a Category II, however detailed specifications on the hitch's lifting capacity remain undisclosed. Although the Leyland 272 does not feature the modern amenities seen in contemporary tractors, it stands as a workhorse emblematic of agricultural machinery of its time, tailored to farmers who require reliability and straightforward functionality.
Show more...

Key Specifications

Category: Utility

Power Output: 71

Transmission: Manual

Drive Type: 2WD

Operating Weight: 7500

Fuel Type: Diesel

Leyland 272 vs. Similar Tractors

Power Output
Average
Greater than 65% of similar tractors.
Operating Weight
Average
Greater than 54% of similar tractors.

Technical Specifications

Engine

Manufacturer
Leyland
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
4
Displacement (ci)
230
Bore (in)
3.858
Stroke (in)
4.921
Rated RPM
2200
Power Output (hp)
71

Transmission

Type
Manual
Forward Gears
10
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
134
Width (in)
-
Height (in)
105.5
Operating Weight (lb)
7500

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
30
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Rear
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
