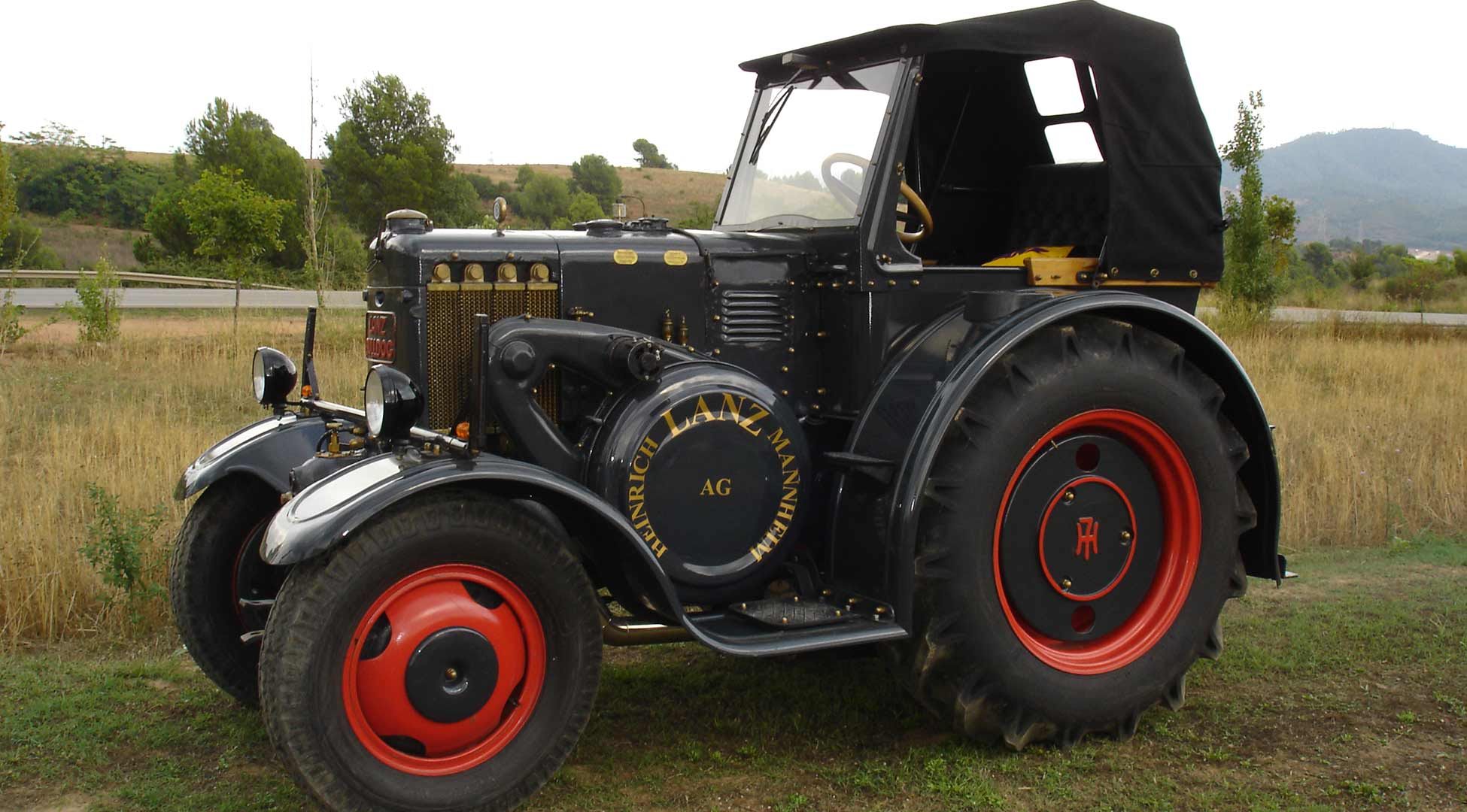

Lanz Eil Bulldog D2538

Last Updated: June 2024

Overview

The Lanz Eil Bulldog D2538 is a vintage tractor known for its single-cylinder, large displacement engine which provides a unique and simple solution for traction and power. With a 10.3-liter engine displacing 628.5 cubic inches and generating 53.9 horsepower at a low 750 rated RPM, this tractor would have been suitable for a variety of tasks in its time. The two-wheel-drive system and manual five-speed transmission, featuring five forward gears and one reverse gear, allow for basic maneuvering and operation. Its rugged, mechanical simplicity combined with the distinctive sound and operation of its large diesel engine make it an icon of early 20th-century farming machinery. Although lacking the advanced features of modern tractors, the Lanz Eil Bulldog D2538 remains a piece of agricultural history, symbolizing the transition from animal to mechanical labor in the farming industry.
Show more...

Key Specifications

Power Output: 53.9

Transmission: Manual

Drive Type: 2WD

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Lanz
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
1
Displacement (ci)
628.5
Bore (in)
8.858
Stroke (in)
10.24
Rated RPM
750
Power Output (hp)
53.9

Transmission

Type
Manual
Forward Gears
5
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
