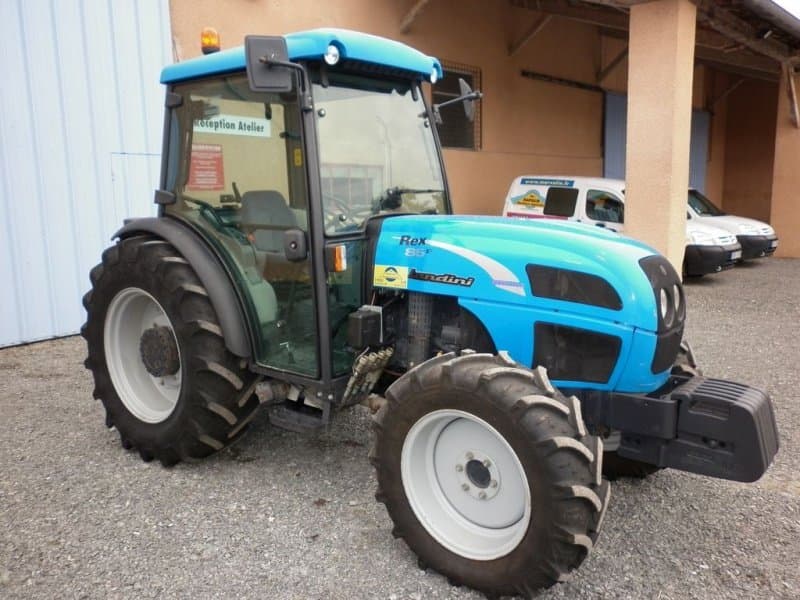

Landini Rex 85

Last Updated: June 2024

Overview

The Landini Rex 85 is an orchard and vineyard tractor known for its flexibility and compact dimensions. It features a 4.4 L Perkins 1104C-44 diesel engine that delivers 81.6 horsepower at 2200 RPM and has a displacement of 268.5 cubic inches. The engine relies on liquid cooling and direct injection, offering high torque at lower RPMs with a rating of 215 lb-ft at 1400 RPM. This tractor is designed with a two-wheel-drive chassis, providing a 4x2 wheel configuration. It is equipped with a 15-speed mechanical shuttle transmission that allows for varied operating speeds. There is also an alternative power shuttle option with 20 forward and reverse gears and an electro-hydraulic wet disc clutch. The Rex 85 offers an adjustable wheelbase, varying based on drive configuration, and provides significant ground clearance. Its relatively narrow width makes it suitable for use in the confined spaces of orchard rows and vineyards.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 81.6

Transmission: Mechanical shuttle

Drive Type: 2WD

Operating Weight: 5753 to 6259

Fuel Type: Diesel

Landini Rex 85 vs. Similar Tractors

Power Output
Average
Greater than 57% of similar tractors.
Operating Weight
Above Average
Greater than 86% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104C-44
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.135
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
81.6

Transmission

Type
Mechanical shuttle
Forward Gears
15
Reverse Gears
15
Total Gears
-

Dimensions

Length (in)
157.8
Width (in)
51.9
Height (in)
88.6 (height with cab; height with steering wheel: 57)
Operating Weight (lb)
5753 to 6259

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Cat. II Three-Point Hitch
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
