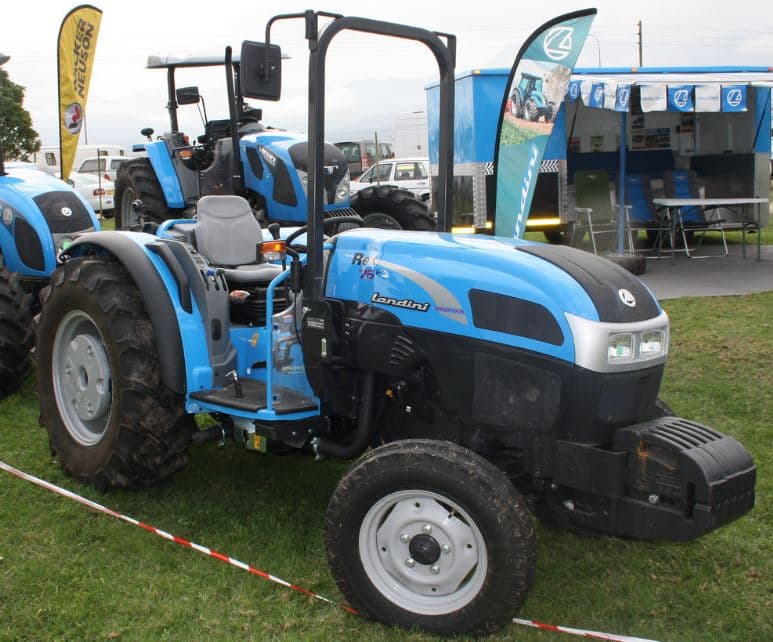

Landini Rex 75

Last Updated: June 2024

Overview

The Landini Rex 75 is a versatile orchard/vineyard tractor produced by Landini, which is part of the Argo group. It operates on a 4x2 two-wheel drive chassis with a powerful Perkins 1104C-44, four-cylinder, liquid-cooled diesel engine that offers a displacement of 268.5 cubic inches, a 4.135-inch bore, a 5.00-inch stroke, and an output of 68.2 horsepower at a rated RPM of 2200. The tractor is equipped with two types of transmissions: a 15-speed mechanical shuttle and a 20-speed power shuttle. With a weight ranging from 5753 to 6259 pounds depending on the configuration, and a ground clearance of 15 inches, it accommodates various working conditions. The Rex 75's size at 157.8 inches in length and 51.9 inches in width supports maneuverability in restricted spaces common in orchard and vineyard work.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 68.2

Transmission: Mechanical Shuttle / Power Shuttle

Drive Type: 2WD

Operating Weight: 5753 / 6259 (2WD / 4WD)

Fuel Type: Diesel

Landini Rex 75 vs. Similar Tractors

Power Output
Average
Greater than 42% of similar tractors.
Operating Weight
Excellent
Greater than 98% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104C-44
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.135
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
68.2

Transmission

Type
Mechanical Shuttle / Power Shuttle
Forward Gears
15 / 20
Reverse Gears
15 / 20
Total Gears
-

Dimensions

Length (in)
157.8
Width (in)
51.9
Height (in)
57 (steering wheel) / 88.6 (cab)
Operating Weight (lb)
5753 / 6259 (2WD / 4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
