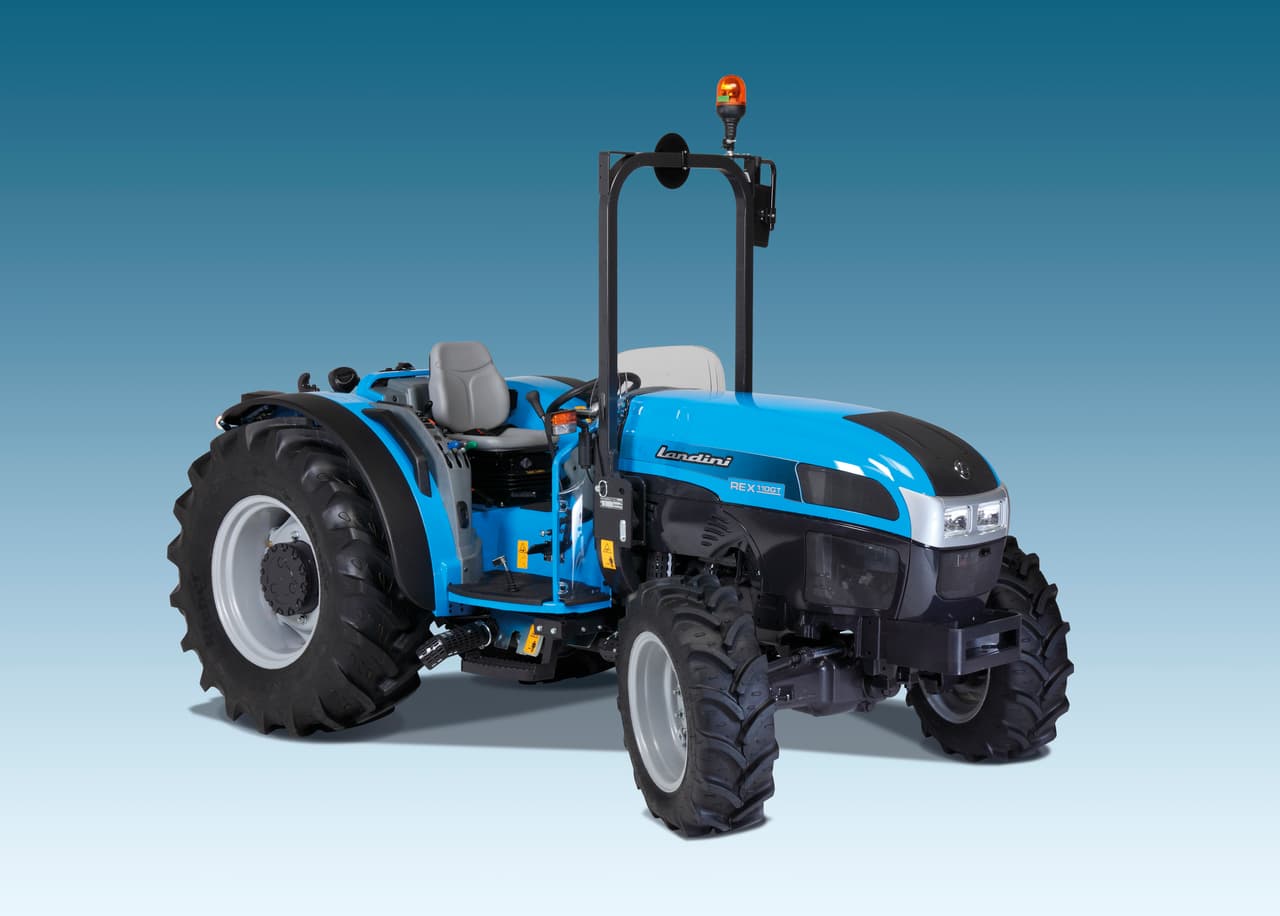

Landini Rex 110

Last Updated: June 2024

Overview

The Landini Rex 110 is designed for use in orchard and vineyard contexts, featuring a 4x2 two-wheel-drive chassis with power steering for maneuverability. It comes equipped with a choice of mechanical or power shuttle transmissions, each offering 15 forward and reverse gears to suit various operational needs. The tractor is powered by a 102hp, four-cylinder turbocharged and aftercooled Perkins diesel engine, offering considerable power and torque for a tractor of its size. Despite differing models offering slight variations in dimensions and weight, the basic framework of the Rex 110 provides a sturdy tractor with a minimum width of 55.6 inches for GE model and up to 61.2 inches for GT model, facilitating work in tighter spaces. The overall design caters to user comfort and safety, with the operating station available with either a 91.1-inch tall ROPS (for F and GT models) or an enclosed cab with a height of 89 inches. The exact year of manufacture start and end for this tractor are unknown, as is the detailed information on the hydraulic system and the tractor's Power Take-Off (PTO) speeds.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 102

Transmission: Mechanical shuttle / Power shuttle

Operating Weight: 5600 to 6313

Fuel Type: Diesel

Landini Rex 110 vs. Similar Tractors

Power Output
Above Average
Greater than 78% of similar tractors.
Operating Weight
Above Average
Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44TA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.134
Stroke (in)
5
Rated RPM
-
Power Output (hp)
102

Transmission

Type
Mechanical shuttle / Power shuttle
Forward Gears
15
Reverse Gears
15
Total Gears
-

Dimensions

Length (in)
157.8
Width (in)
56.6 (F model) / 55.6 (GE model) / 61.2 (GT model)
Height (in)
91.1 (with ROPS for F and GT models) / 89 (with Cab)
Operating Weight (lb)
5600 to 6313

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab/ROPS (Roll-Over Protective Structure)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
