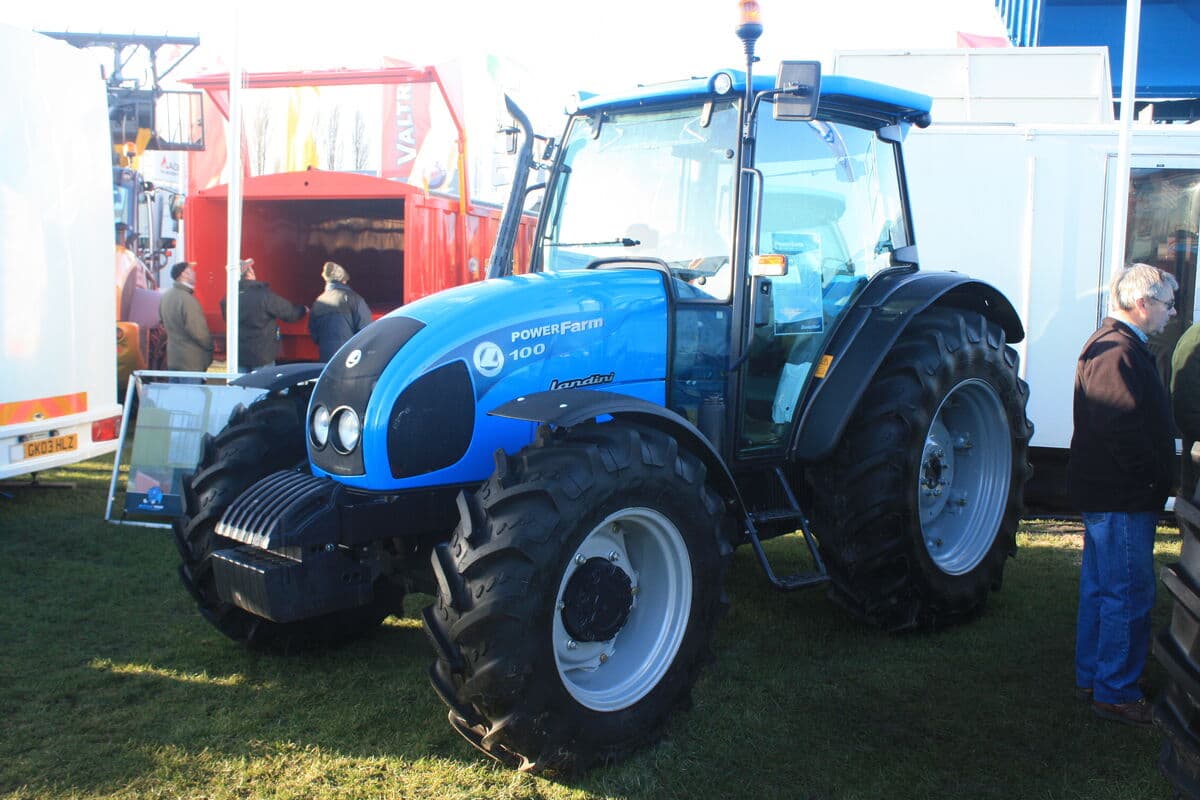

Landini Powerfarm 100

Last Updated: June 2024

Overview

The Landini Powerfarm 100 is a utility tractor that offers a robust engine and versatile transmission options. Its 4.4L four-cylinder turbocharged intercooled Perkins diesel engine provides 92.5 horsepower, maintained through a liquid cooling system. The versatile transmission features include mechanical shuttle, power shuttle, shuttle with creeper, and shuttle with overdrive, with up to 24 forward and 12 reverse gears, allowing the operator to select the optimal speed for various tasks. A two-wheel drive (2WD) chassis configuration and power steering facilitate easy maneuverability. The tractor's structure boasts a durable frame, with a 2WD wheelbase of 92.2 inches, length of 162.8 inches, width of 81.2 inches, and a cab height of 100.4 inches, supporting its total operating weight of 7326 pounds. Additional specifications such as PTO speeds and hydraulic system type are not provided. The Powerfarm 100, with its combination of power and agility, is designed for a variety of agricultural tasks, and it is equipped with a standard Category 3 three-point hitch at the rear for implements attachment.
Show more...

Key Specifications

Category: Utility

Power Output: 92.5

Transmission: Mechanical Shuttle, Power Shuttle

Drive Type: 2WD

Operating Weight: 7326

Fuel Type: Diesel

Landini Powerfarm 100 vs. Similar Tractors

Power Output
Above Average
Greater than 78% of similar tractors.
Operating Weight
Average
Greater than 54% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44TA
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.13
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
92.5

Transmission

Type
Mechanical Shuttle, Power Shuttle
Forward Gears
24 (assuming this is the most gears provided by different transmission options available)
Reverse Gears
12 (assuming this is the most reverse gears available from given transmission options)
Total Gears
Unknown (the total may differ based on the combination of forward and reverse gears for each transmission option)

Dimensions

Length (in)
162.8
Width (in)
81.2
Height (in)
100.4
Operating Weight (lb)
7326

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II (Three-Point Hitch assumed based on Rear Type: II)
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab (assuming because of 'Height (cab)')
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Unknown (assuming hydraulic system specifications from "Steering Flow")
