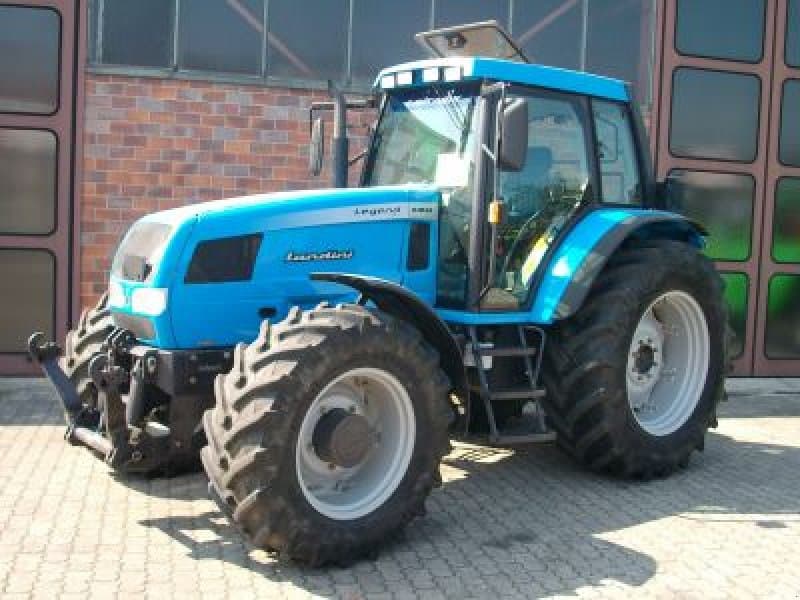

Landini Legend 130

Last Updated: June 2024

Overview

The Landini Legend 130 is a utility tractor with a 4x4 MFWD 4WD chassis configuration, designed for versatile performance in a variety of agricultural tasks. It comes with a turbocharged six-cylinder Perkins engine, either model 1006-60T or 1006-6TLR2, with a displacement of 366.1 cubic inches and a power output of 127 horsepower. Operating at a rated RPM of 2200, this engine provides the robust power needed for heavy-duty work. This tractor is equipped with hydrostatic power steering for ease of maneuverability and a tire setup of 420/70R28 at the front and 520/70R38 at the rear, suitable for standard agricultural applications. The precise transmission details are unclear, with mentions of 72-speed and 36-speed gear variations across sources. The Landini Legend 130 is designed with an operating weight of 12,128 pounds, a length of 195.7 inches, and a height of 116.1 inches, featuring a wheelbase of 110.2 inches, which contributes to its stability and performance in the field.
Show more...

Key Specifications

Power Output: 127 (assuming this as the most mentioned power, with one outlier at 126 hp)

Drive Type: 4WD

Operating Weight: 12,128 (assuming the most consistent measurement)

Technical Specifications

Engine

Manufacturer
Perkins
Model
1006-60T, 1006-6TLR2 (assumed to be a variant or update of 1006-60T)
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbo
Cylinders
6
Displacement (ci)
366.1
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
127 (assuming this as the most mentioned power, with one outlier at 126 hp)

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
195.7 (assuming most consistent measurement)
Width (in)
-
Height (in)
116.1 (assuming most consistent measurement)
Operating Weight (lb)
12,128 (assuming the most consistent measurement)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (size specified as 420/70R28, but actual diameter in inches not provided)
Front Tire Width (in)
Unknown (width is part of tire specification 420/70R28, but not directly provided in inches)
Rear Tire Diameter (in)
Unknown (size specified as 520/70R38, but actual diameter in inches not provided)
Rear Tire Width (in)
Unknown (width is part of tire specification 520/70R38, but not directly provided in inches)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3 (assumed based on knowledge of Landini tractors)
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
