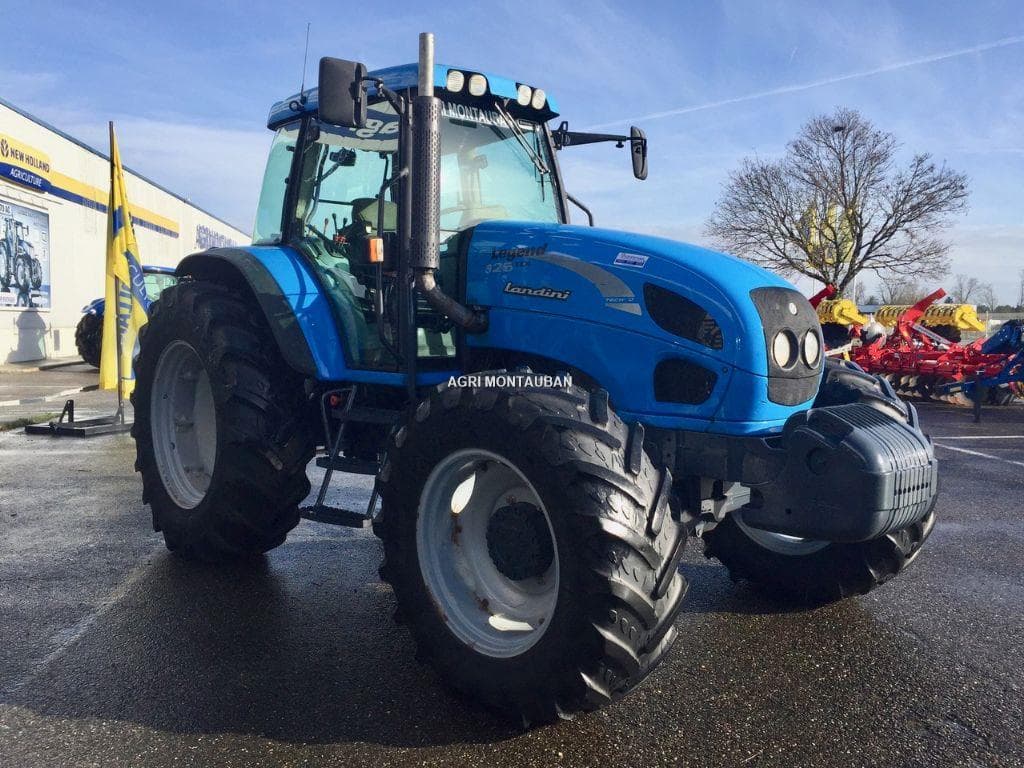

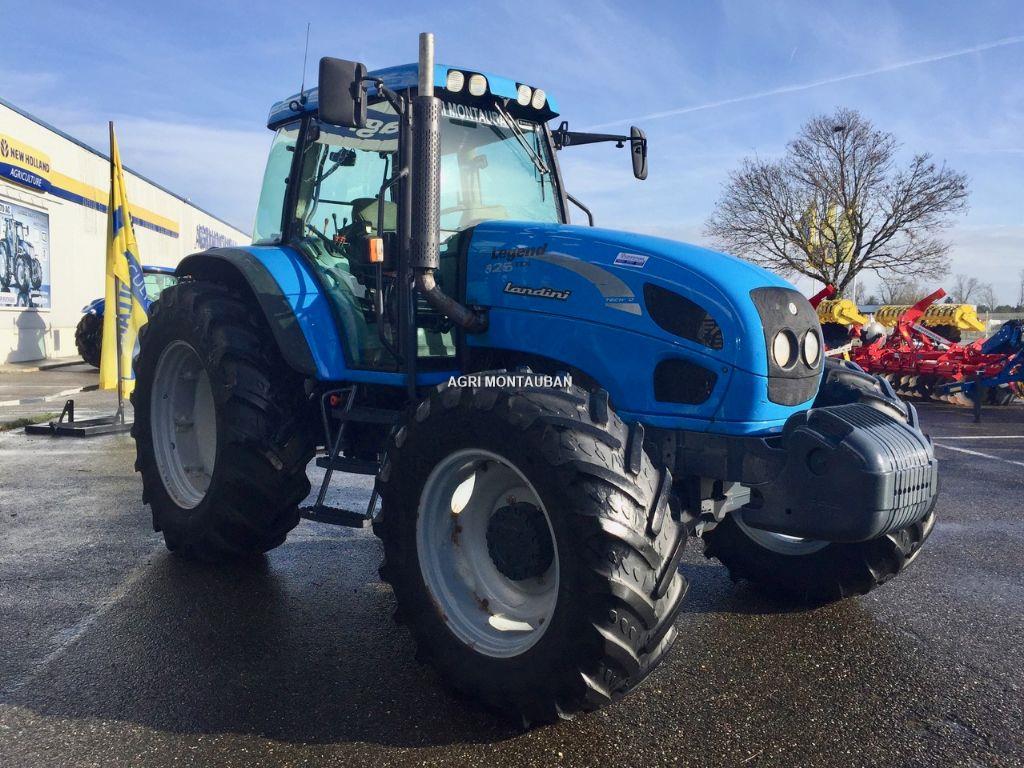

Landini Legend 125 TDI

Last Updated: June 2024

Overview

The Landini Legend 125 TDI is a formidable row-crop tractor renowned for its reliable performance and versatility. Equipped with a robust 4WD chassis, it boasts a 6-cylinder, turbocharged Perkins 1106-E60TA diesel engine which provides a substantial 116 horsepower. The engine features a displacement of 365 cubic inches and operates at a rated RPM of 2200, capable of delivering exceptional torque. Different transmission options are available, with some models featuring up to 108 forward and 36 reverse gears, offering a wide range of speed selections to suit various agricultural tasks. The Landini Legend 125 TDI is designed to operate efficiently with a wheelbase of 110 inches, a length of 202.5 inches, and a weight of 12,760 lbs, making it a heavy-duty piece of machinery for large-scale farming. Its liquid-cooled engine ensures it maintains optimum operating temperatures during extensive use. This model is also notable for its sufficient ground clearance of 20.5 inches, allowing it to navigate rough and uneven terrain with ease.
Show more...

Key Specifications

Category: Row Crop

Power Output: 116

Drive Type: 4WD

Operating Weight: 12,760

Fuel Type: Diesel

Landini Legend 125 TDI vs. Similar Tractors

Power Output
Average
Greater than 33% of similar tractors.
Operating Weight
Poor
Greater than 7% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1106-E60TA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
365
Bore (in)
3.94
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
116

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
108

Dimensions

Length (in)
202.5
Width (in)
81
Height (in)
109
Operating Weight (lb)
12,760

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
