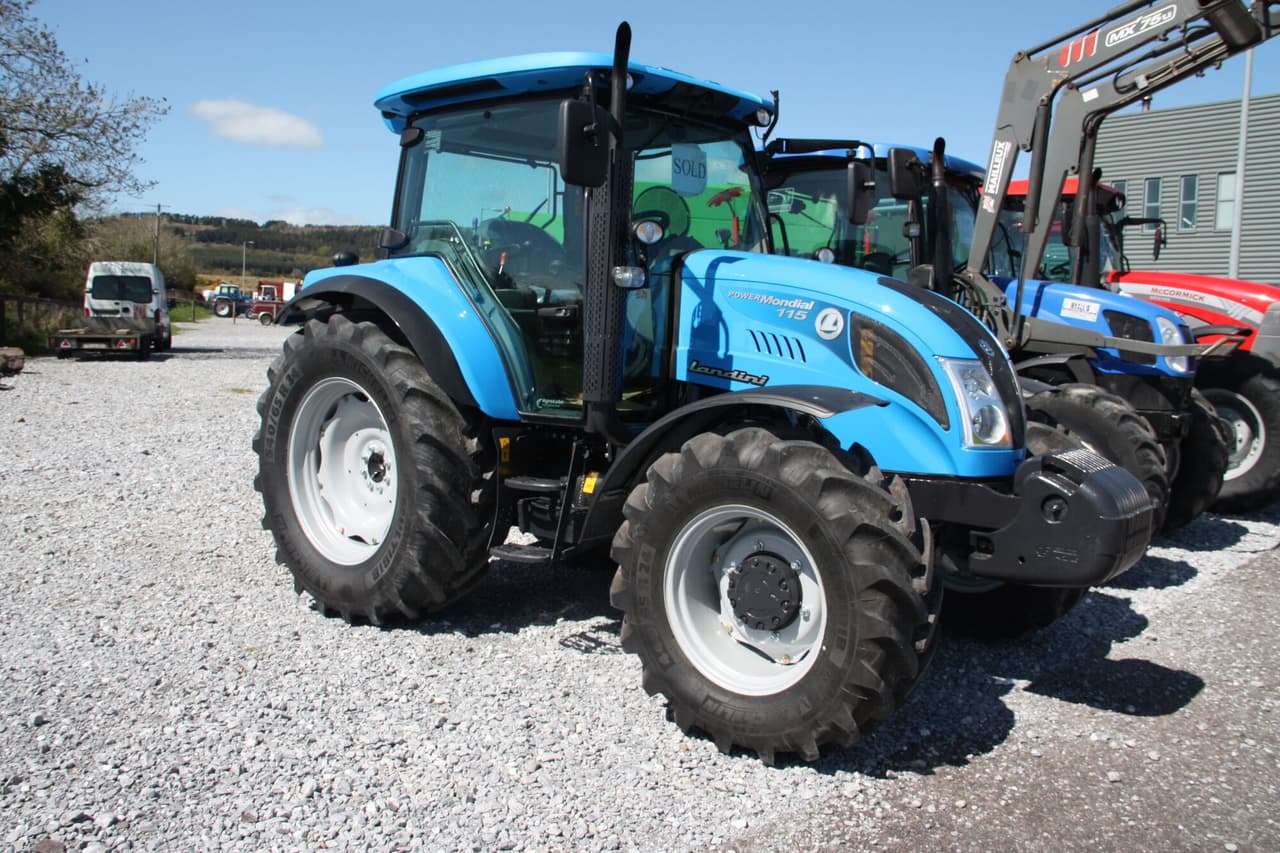

Landini Landforce 115

Last Updated: June 2024

Overview

The Landini Landforce 115 is a utility tractor known for its robust build and reliable performance. With a 4x4 MFWD 4WD chassis, it offers better traction and stability across various terrains. The power steering feature ensures easy maneuverability. It equipped with a mechanical shuttle transmission offers flexibility, having up to 36 forward and 12 reverse gears. At the heart of the Landforce 115 is a turbocharged diesel engine from FPT, the NEF4-2V, which is liquid-cooled and provides 112 horsepower at 2200 RPM. The engine displacement measures at 273.7 cubic inches, with a bore and stroke of 4.09 inches and 5.20 inches respectively. This tractor is fitted with a Three-Point Hitch of category II and a hydraulic system type is an open center, which is a standard in utility tractors. Distinctive tire sizes include 14.9R24 for the front and 16.9R38 for the rear, with a 100-inch wheelbase that contributes to the tractor's stability. The tractor's length is 187 inches, width is 82 inches, and height can be either 109.5 inches with the ROPS or 109 inches with the cab. Weighing at 9240 lbs, its substantial heft further grounds the tractor for heavy-duty tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 112

Transmission: Mechanical shuttle

Drive Type: 4WD

Operating Weight: 9240

Fuel Type: Diesel

Landini Landforce 115 vs. Similar Tractors

Power Output
Above Average
Greater than 86% of similar tractors.
Operating Weight
Average
Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
NEF4-2V
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
273.7
Bore (in)
4.09
Stroke (in)
5.2
Rated RPM
2200
Power Output (hp)
112

Transmission

Type
Mechanical shuttle
Forward Gears
36
Reverse Gears
12
Total Gears
36 forward and 12 reverse

Dimensions

Length (in)
187
Width (in)
82
Height (in)
109.5/109 (Height variation due to ROPS and Cab versions)
Operating Weight (lb)
9240

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24 (from 14.9R24)
Front Tire Width (in)
-
Rear Tire Diameter (in)
38 (from 16.9R38)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
