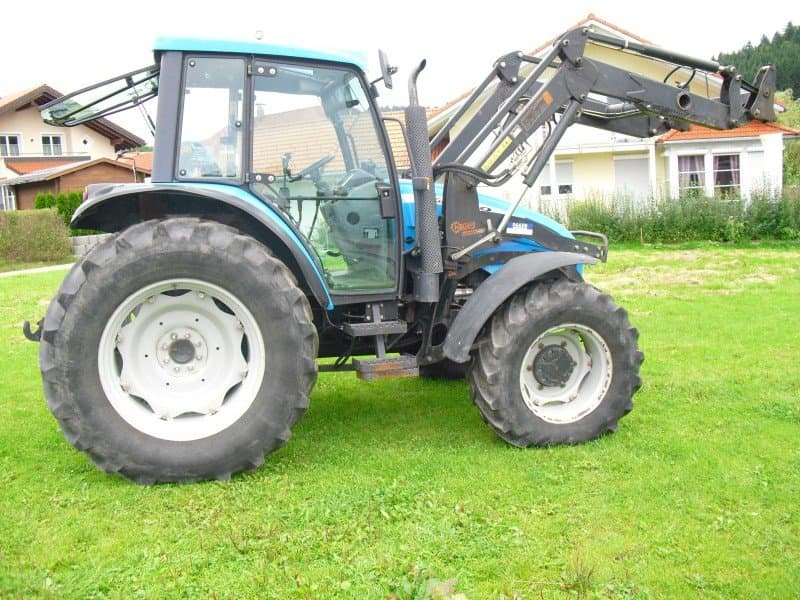

Landini Ghibli 90

Last Updated: June 2024

Overview

The Landini Ghibli 90 is a utility class tractor boasting a robust 4-wheel drive chassis with a Multi-Function 4WD (MFWD) configuration. It is powered by a 4-cylinder Perkins 1004-40T turbocharged diesel engine with a liquid cooling system, capable of producing 88 horsepower at a rated RPM of 2200. The engine's displacement is 243.5 cubic inches, with a bore and stroke measuring 3.937 inches and 5.00 inches, respectively. The Ghibli 90 employs a shuttle transmission that can either provide a 12-speed, 24-speed with creeper option, or 24-speed with overdrive, offering flexibility for various work conditions. It comes with power steering to ease maneuverability and is fitted with standard agricultural tires, with sizes 14.9R24 for the front and 18.4R34 for the rear. Measuring 71.9 inches in length and 103.9 inches in height (inclusive of the cab), this model has an operating weight of 8598 pounds. The tractor has an electric starter system and features a Category II rear hitch. Further details regarding hydraulic system type, PTO options, and other potential additional features are not provided, catering the description to a user who requires fundamental mechanical and operational characteristics for effective use.
Show more...

Key Specifications

Category: Utility

Power Output: 88

Transmission: Shuttle

Drive Type: 4WD

Operating Weight: 8598

Fuel Type: Diesel

Landini Ghibli 90 vs. Similar Tractors

Power Output
Above Average
Greater than 75% of similar tractors.
Operating Weight
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1004-40T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
243.5
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
88

Transmission

Type
Shuttle
Forward Gears
24
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
71.9
Width (in)
-
Height (in)
103.9
Operating Weight (lb)
8598

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
