Landini Atlas 90

Last Updated: September 2024

Overview

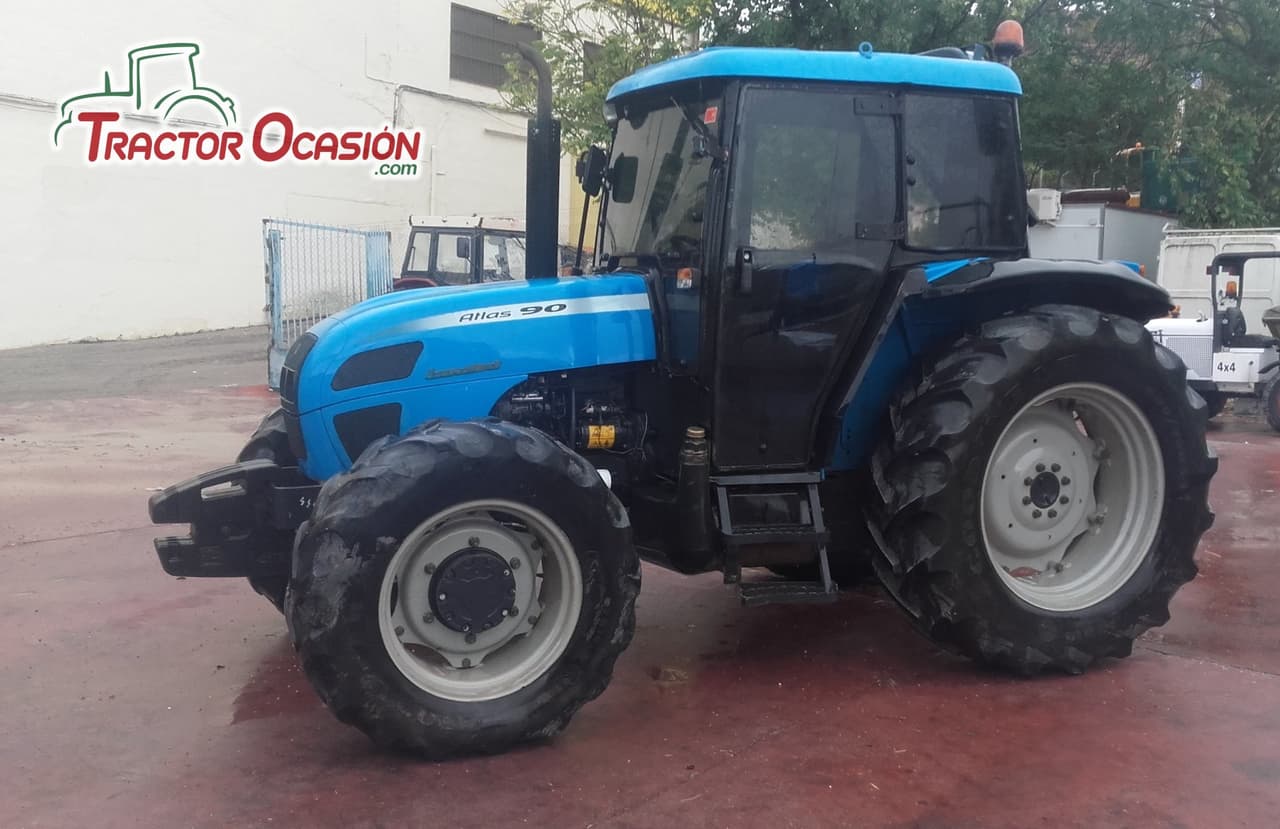

The Landini Atlas 90 is a powerful utility tractor designed for various farm tasks. It features a 2WD chassis with power steering, making it easy to handle in the field. The tractor is equipped with a Perkins 1004-40T engine, which is a 4-cylinder, turbocharged diesel engine. This engine provides 88 hp of power, which is above average for tractors in its class. The Atlas 90 also has a good amount of torque, delivering 264 lb-ft at 1400 rpm.

One of the standout features of the Atlas 90 is its transmission. It has a shuttle-type transmission with 24 forward gears and 12 reverse gears, giving the operator plenty of options for different tasks and speeds. The tractor comes with agricultural tires and a three-point hitch at the rear, which is category II. This allows for easy attachment of various implements. The Atlas 90 is a mid-sized tractor, measuring 164.2 inches long, 75.9 inches wide, and 102.4 inches high with the ROPS (Roll-Over Protective Structure). It has an operating weight of 7385 lb, which is above average for its category, providing good stability during operation.
Show more...

Key Specifications

Category: Utility

Power Output: 88 hp (65.6 kW)

Transmission: Shuttle

Drive Type: 2WD

Operating Weight: 7385 lb (3350 kg)

Fuel Type: Diesel

Landini Atlas 90 vs. Similar Tractors

Power Output

The Power Output for the Landini Atlas 90 is Above Average. It is greater than 77% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Landini Atlas 90 is Above Average. It is greater than 73% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Landini Atlas 90 is Above Average. It is greater than 70% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Landini Atlas 90 is Below Average. It is greater than 28% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Perkins
Model
1004-40T
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
244 ci (4.0 L)
Bore
3.94 in (100.0 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
2200
Power Output
88 hp (65.6 kW)

Transmission

Type
Shuttle
Forward Gears
24
Reverse Gears
12

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
