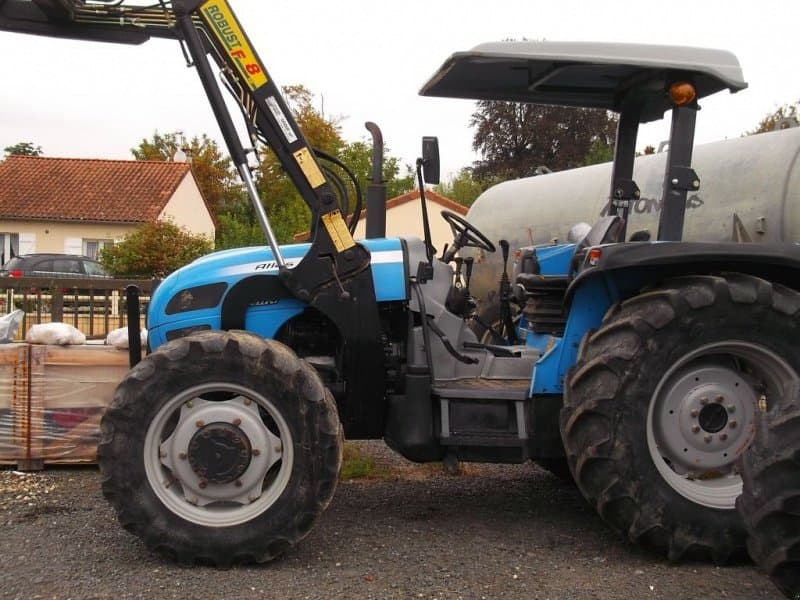

Landini Atlas 70

Last Updated: June 2024

Overview

The Landini Atlas 70 is a utility tractor that was manufactured by Landini, which is part of the Argo group. Equipped with a two-wheel-drive chassis and a shuttle transmission that can either be a 12-speed or with additional creeper and overdrive options, giving it up to 24 forward and reverse gears to handle a variety of tasks. It utilizes a Perkins 1004-40 four-cylinder liquid-cooled diesel engine that delivers 67 horsepower and has a 243.5 cubic inch displacement. The engine is designed to meet Stage I emissions standards, which indicates early compliance with emission regulations. With power steering and an electric starter system, the Atlas 70 provides a level of ease in operation. This tractor has a 2WD standard tire configuration with 9.00-16 sized front tires and 16.9R30 rear tires. Measuring 164.2 inches in length and 72 inches in width, the vehicle features a height of 65.8 inches to the steering wheel and 100.4 inches to the ROPS (rollover protection structure). The weight is listed at 7055 lbs. Additional specifications including hydraulic system type, power take-off (PTO) speeds, brake type, as well as operator station type remain undocumented within the data provided.
Show more...

Key Specifications

Category: Utility

Power Output: 67

Transmission: Shuttle

Drive Type: 2WD

Operating Weight: 7055

Fuel Type: Diesel

Landini Atlas 70 vs. Similar Tractors

Power Output
Average
Greater than 62% of similar tractors.
Operating Weight
Average
Greater than 53% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1004-40
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
243.5
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
67

Transmission

Type
Shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
24

Dimensions

Length (in)
164.2
Width (in)
72
Height (in)
Height (steering wheel): 65.8 | Height (ROPS): 100.4
Operating Weight (lb)
7055

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
