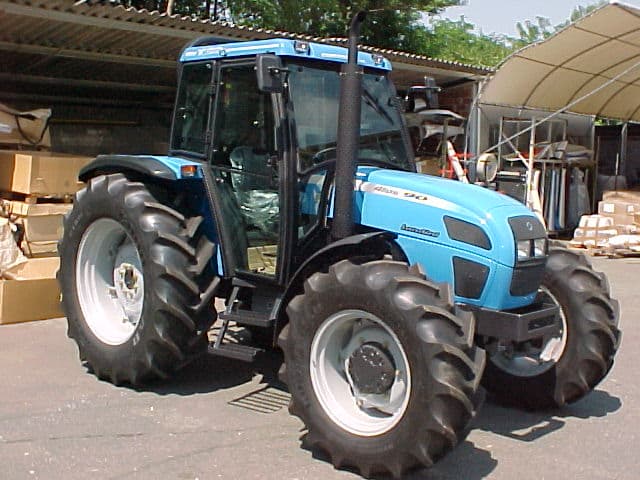

Landini Atlas 100

Last Updated: June 2024

Overview

The Landini Atlas 100 is a utility tractor designed for a variety of tasks on a farm or worksite. It houses a powerful 93 hp Perkins 1004-40T engine, which is turbocharged for efficient operation and provides sufficient power for robust agricultural applications. The engine also features a liquid cooling system to manage thermal stress during heavy operations, with a 243.5 ci displacement and operating at a rated RPM of 2200. Paired with a diverse shuttle transmission offering 24 forward and 12 reverse gears, this tractor can tackle different terrains and tasks with ease. Maneuverability is supported by power steering and a 4x2 2WD chassis. However, specific details regarding the valve configuration, PTO, and hydraulic system type remain unknown without additional data.
Show more...

Key Specifications

Category: Utility

Power Output: 93

Transmission: Shuttle

Drive Type: 2WD

Operating Weight: 7385

Fuel Type: Diesel

Image Gallery

Landini Atlas 100 Tractor Landini Atlas 100 Tractor Landini Atlas 100 Tractor Landini Atlas 100 Tractor Landini Atlas 100 Tractor Landini Atlas 100 Tractor Landini Atlas 100 Tractor Landini Atlas 100 Tractor Landini Atlas 100 Tractor Landini Atlas 100 Tractor Landini Atlas 100 Tractor Landini Atlas 100 Tractor

Landini Atlas 100 vs. Similar Tractors

Power Output
Above Average
Greater than 78% of similar tractors.
Operating Weight
Average
Greater than 54% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1004-40T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
243.5
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
93

Transmission

Type
Shuttle
Forward Gears
24
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
164.6
Width (in)
75.9
Height (in)
102.4 (assumed maximum based on the height with ROPS)
Operating Weight (lb)
7385

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
