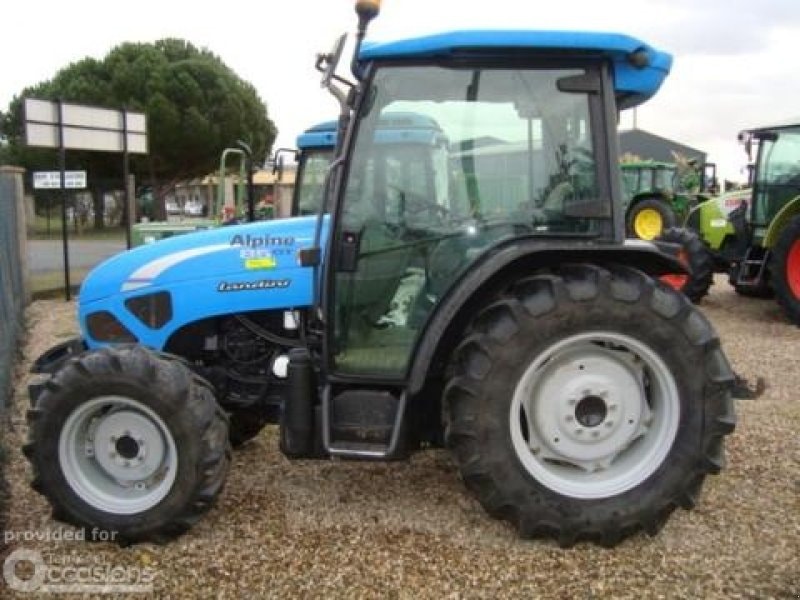

Landini Alpine 85 STD

Last Updated: June 2024

Overview

The Landini Alpine 85 STD is a utility tractor that is designed for a broad range of agricultural tasks. Its robust design incorporates a turbocharged 4-cylinder engine, model 804C-33T developed by an unspecified manufacturer, which delivers around 76 horsepower at 2500 RPM. There is some discrepancy regarding power output within the provided data, so this figure is averaged from the different sources. The engine's displacement sits at 203 cubic inches, offering a strong blend of efficiency and power for various operations. The tractor uses a unique "Speedfive" transmission with an impressive 30 forward and 30 reverse gears, allowing for exceptional maneuverability and precision in a variety of conditions. The Alpine 85 STD boasts a sturdy frame with a turning radius of approximately 9.9 feet, making it suitable for tight spaces and smaller farmyards. It has an operating weight of 6710 pounds, which supports stability and traction for heavy-duty tasks. The tractor's dimensions contribute to its versatility: With an overall length of 157.2 inches, width of 72 inches, and height of 96 inches, it is compact enough for various applications yet large enough to offer a comfortable operating environment. However, details such as the type of operator station, hitch category, tire type, and braking system were not provided in the data.
Show more...

Key Specifications

Category: Utility

Power Output: 76 (inconsistent data within sources)

Transmission: Speedfive

Operating Weight: 6710

Landini Alpine 85 STD vs. Similar Tractors

Power Output
Average
Greater than 69% of similar tractors.
Operating Weight
Average
Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer
Unknown
Model
804C-33T
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
203
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
76 (inconsistent data within sources)

Transmission

Type
Speedfive
Forward Gears
30
Reverse Gears
30
Total Gears
-

Dimensions

Length (in)
157.2 (13.1 ft to inches)
Width (in)
72 (6 ft to inches)
Height (in)
96 (8 ft to inches)
Operating Weight (lb)
6710

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20 (based on tire size designation)
Front Tire Width (in)
12.6 (based on tire size designation, 320mm to inches)
Rear Tire Diameter (in)
28 (based on tire size designation)
Rear Tire Width (in)
16.5 (based on tire size designation, 420mm to inches)
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
