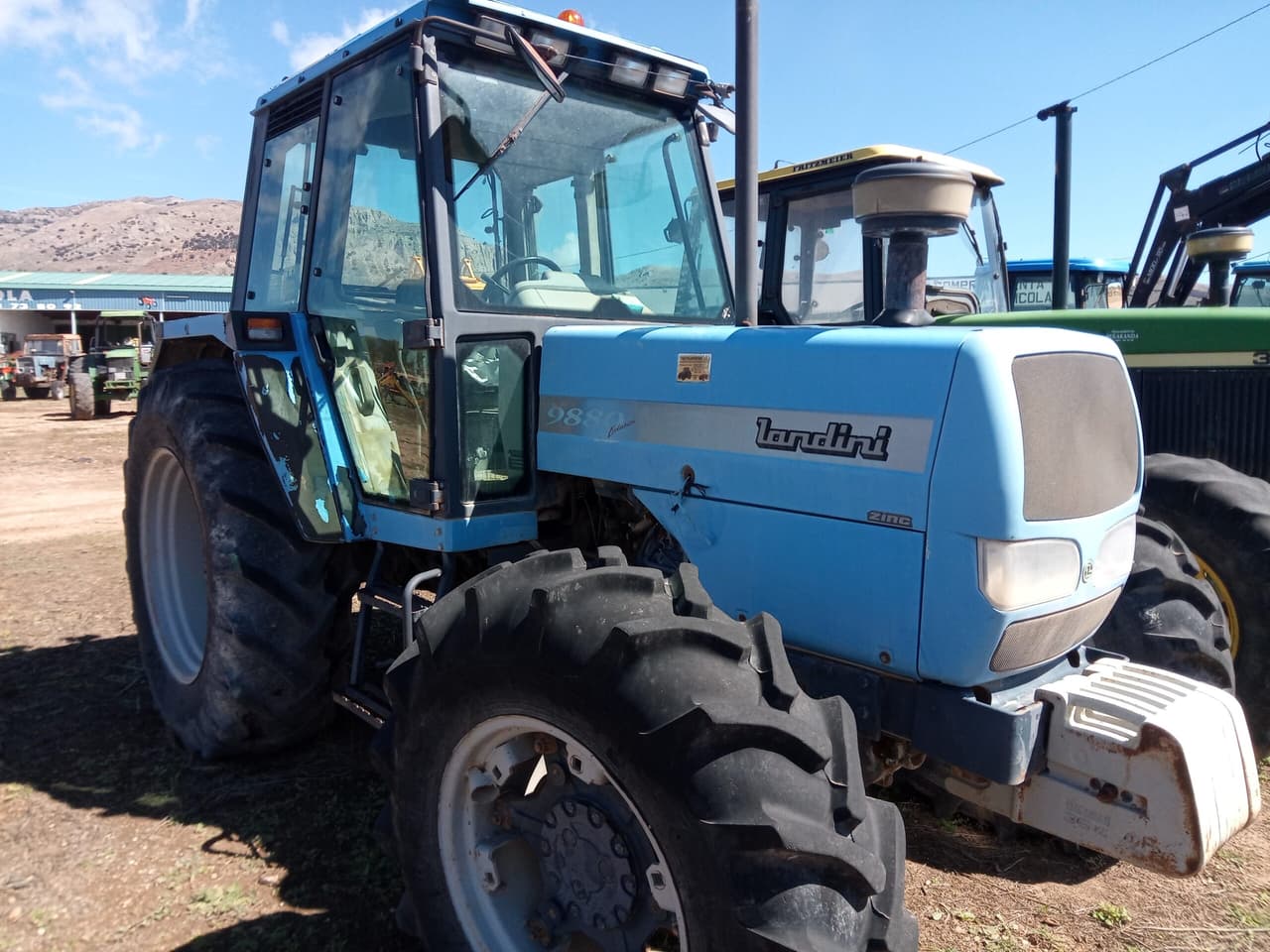

Landini 9880HC

Last Updated: June 2024

Overview

The Landini 9880HC is a high-clearance tractor designed for specialized agricultural operations. It features a 4x2 two-wheel drive chassis with an 88.4-inch wheelbase on the 2WD version and an 87.4-inch wheelbase on the 4WD variant. The tractor is equipped with power steering, enhancing maneuverability in various field conditions. Power is supplied by a 93 hp turbocharged diesel Perkins AT.4-236 engine, with a displacement of 235.5 cubic inches and a bore and stroke of 3.875 by 5.00 inches. The engine is designed to operate at a maximum rated RPM of 2200. For transmission, it employs a 12-speed synchromesh shuttle with an additional creeper gear offering 24 forward and 12 reverse gears, enabling precise speed control. Safety and comfort for the operator are facilitated through a cab-type operator station. Standard agricultural tires are used, varying in size for the 2WD and 4WD models. This tractor is suitable for applications requiring significant ground clearance, such as spraying or working in high residue fields.
Show more...

Key Specifications

Category: Utility, High-Clearance

Power Output: 93

Transmission: Synchromesh shuttle

Drive Type: 2WD

Operating Weight: 7926 (2WD) / 8951 (4WD)

Fuel Type: Diesel

Landini 9880HC vs. Similar Tractors

Power Output
Above Average
Greater than 78% of similar tractors.
Operating Weight
Excellent
Greater than 98% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AT.4-236
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
235.5
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
93

Transmission

Type
Synchromesh shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
24

Dimensions

Length (in)
153 (2WD) / 159.8 (4WD)
Width (in)
77.2 (2WD) / 79.3 (4WD)
Height (in)
113.4
Operating Weight (lb)
7926 (2WD) / 8951 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
