Landini 9880

Last Updated: June 2024

Overview

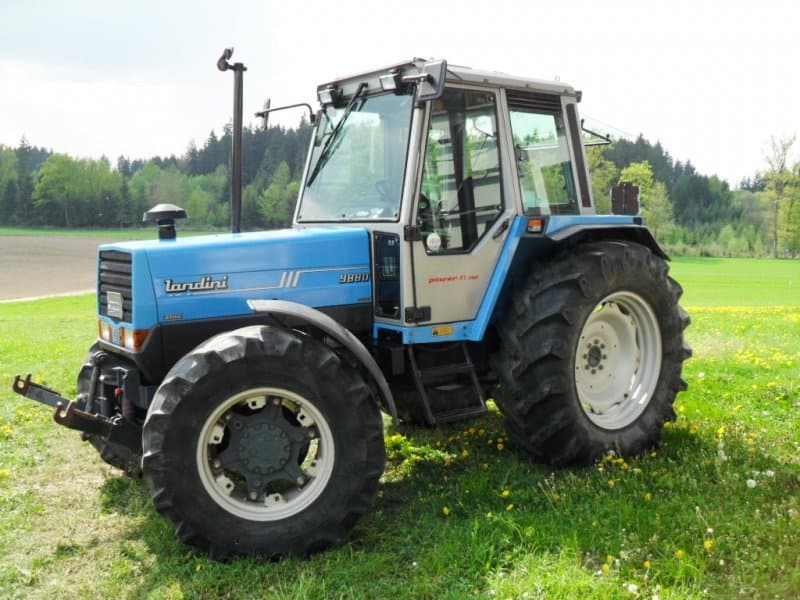

The Landini 9880 is a utility tractor that's designed with versatility in mind, suitable for various farming and agricultural tasks. It has a two-wheel-drive (2WD) chassis, powered by a Perkins AT4.236 turbocharged diesel engine able to produce 93 horsepower, with a displacement of 235.5 cubic inches. The engine operates at a rated RPM of 2200, delivering a torque of 255.9 lb-ft at 1400 RPM. For the transmission, this model offers various configurations: synchromesh, shuttle, and creeper, with up to 24 forward and 12 reverse gears, featuring a dry disc clutch. With a wheelbase of 97 inches (2WD variant) and 96 inches (4WD variant), and a weight that ranges from 8378 to 8818 pounds depending on the configuration, the Landini 9880 provides stability and support for a wide range of tasks. The tractor dimensions are substantial with a length of 152.4 inches and a width of 70.5 inches, all under a height of 104.1 inches for the cab variant. It's equipped with agricultural tires, with the rear tire size 18.4R34 standing out for its ability to provide good traction in different field conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 93

Transmission: Synchromesh, Shuttle, Creeper (Multiple types available)

Drive Type: 2WD

Operating Weight: 8378 to 8818 (range suggests different configurations)

Fuel Type: Diesel

Landini 9880 vs. Similar Tractors

Power Output
Above Average
Greater than 78% of similar tractors.
Operating Weight
Excellent
Greater than 92% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AT4.236
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
235.5
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
93

Transmission

Type
Synchromesh, Shuttle, Creeper (Multiple types available)
Forward Gears
24 (highest number available assumes different options)
Reverse Gears
12 (highest number available assumes different options)
Total Gears
-

Dimensions

Length (in)
152.4
Width (in)
70.5
Height (in)
104.1 (cab)
Operating Weight (lb)
8378 to 8818 (range suggests different configurations)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (sizes given do not specify diameter)
Front Tire Width (in)
Unknown (sizes given do not specify width)
Rear Tire Diameter (in)
Unknown (sizes given do not specify diameter)
Rear Tire Width (in)
Unknown (sizes given do not specify width)
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Unknown (Category 3 size not explicitly mentioned)
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab (height provided suggests cab, but not explicitly stated)
Starter Type
-
Brake Type
-
Hydraulic System Type
-
