Landini 8500

Last Updated: June 2024

Overview

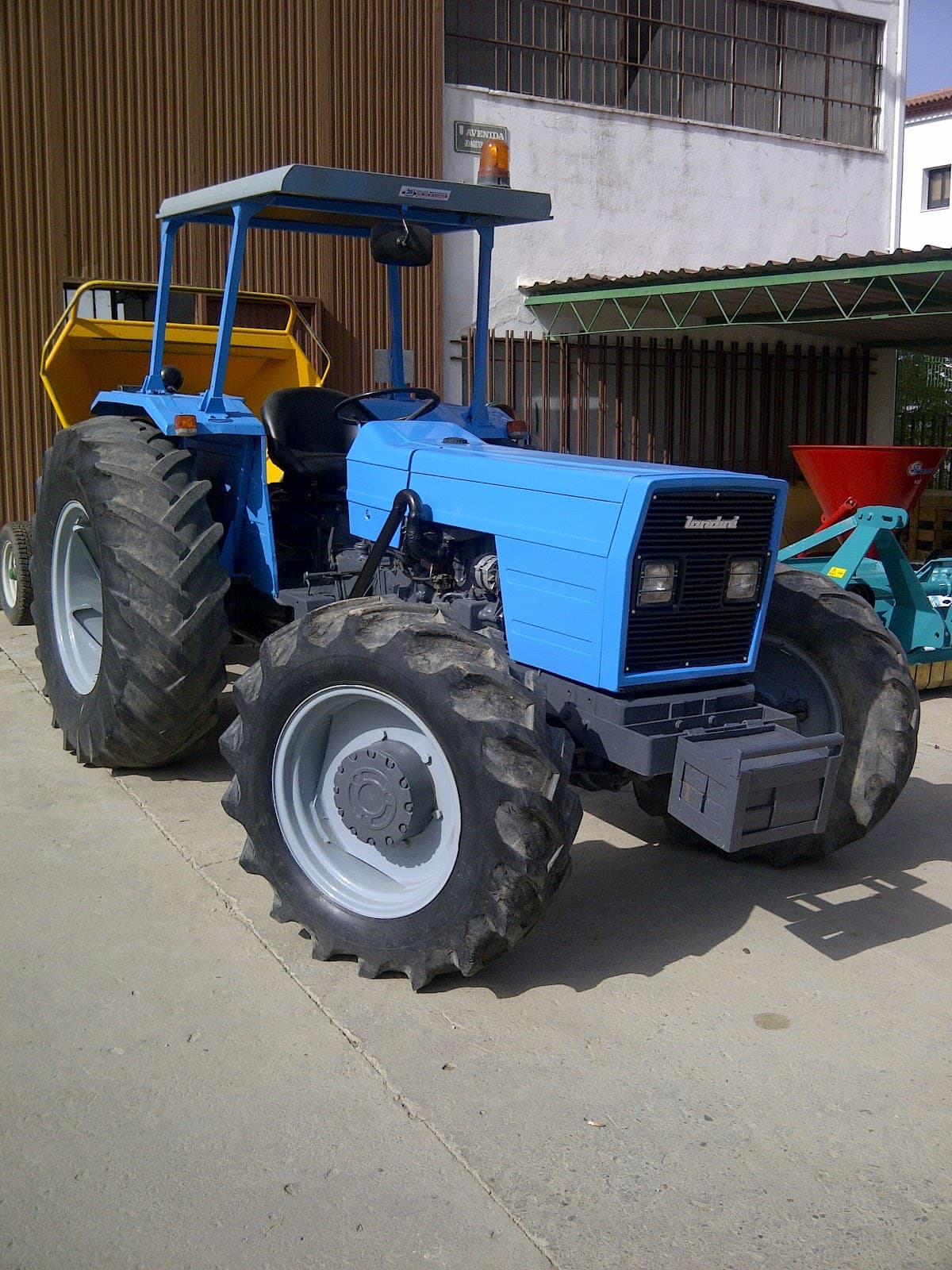

The Landini 8500 is a tractor known for durability and its straightforward mechanical functionality. The tractor is powered by a Perkins A4.248 diesel engine, which delivers 80 horsepower with a displacement of 248 cubic inches. It features a liquid-cooling system to manage engine temperature efficiently. The model's steering mechanism is mechanical, likely contributing to a feeling of direct control over the tractor's movements. With 12 forward and 4 reverse gears, the operator has a wide selection of speed options for various tasks. While specific data about the chassis and drive type were not provided, the existence of different weight specifications suggests both 2WD and 4WD variants. The machine has a substantial operating weight, indicating a robust and stable workhorse capable of handling a variety of agricultural tasks. However, further details about the operator station and onboard technological features are unknown.
Show more...

Key Specifications

Power Output: 80

Operating Weight: 6042 (2WD) / 6571 (4WD)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.248
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated (assumed due to lack of data specifying forced induction)
Cylinders
4
Displacement (ci)
248
Bore (in)
3.975
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
80

Transmission

Type
-
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
149.2
Width (in)
-
Height (in)
-
Operating Weight (lb)
6042 (2WD) / 6571 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (but sizes given are 7.50-16 and 12.4-24)
Front Tire Width (in)
Unknown (width not specified from tire size)
Rear Tire Diameter (in)
Unknown (but size given is 16.9-34)
Rear Tire Width (in)
Unknown (width not specified from tire size)
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
