Landini 6880

Last Updated: June 2024

Overview

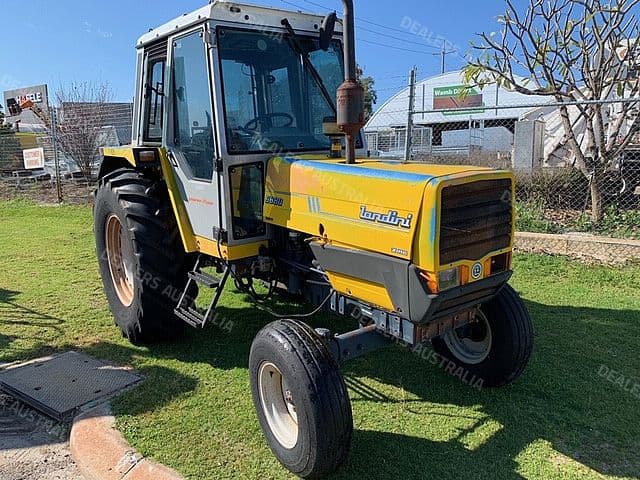

The Landini 6880 is a utility tractor equipped with a powerful Perkins A4.236 four-cylinder diesel engine. This tractor offers a variety of transmission options including synchromesh, shuttle, and creeper with up to 24 forward and 12 reverse gears, facilitating a range of speed options for various tasks. It operates on a 4x2 2WD chassis and features power steering for easy maneuverability. The engine's cooling system is liquid-based, ensuring consistent performance and efficiency. This model's strength is demonstrated by its engine's torque of 179.2 lb-ft at 1400 RPM and a rated power output of 62 horsepower at 2200 RPM. The tractor's operating weight varies between 6923 and 7584 pounds, and it's substantial in size, with a length of 148.9 inches, width of 72.1 inches, and a cab height of 101.3 inches. Designed for a variety of agricultural tasks, the Landini 6880 is a valuable asset for farmers seeking a reliable and robust vehicle for their farming needs.
Show more...

Key Specifications

Category: Utility

Power Output: 62

Transmission: Synchromesh, Shuttle, Creeper

Drive Type: 2WD

Operating Weight: 6923 to 7584

Fuel Type: Diesel

Landini 6880 vs. Similar Tractors

Power Output
Average
Greater than 59% of similar tractors.
Operating Weight
Excellent
Greater than 91% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.236
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated (assumed due to the absence of turbocharged or supercharged data)
Cylinders
4
Displacement (ci)
235.5
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
62

Transmission

Type
Synchromesh, Shuttle, Creeper
Forward Gears
24
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
148.9
Width (in)
72.1
Height (in)
101.3 (height of cab)
Operating Weight (lb)
6923 to 7584

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (assuming 16" based on tire specification)
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
Unknown (assuming 30" based on tire specification)
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (assumed because height is provided specifically for that)
Starter Type
-
Brake Type
-
Hydraulic System Type
-
