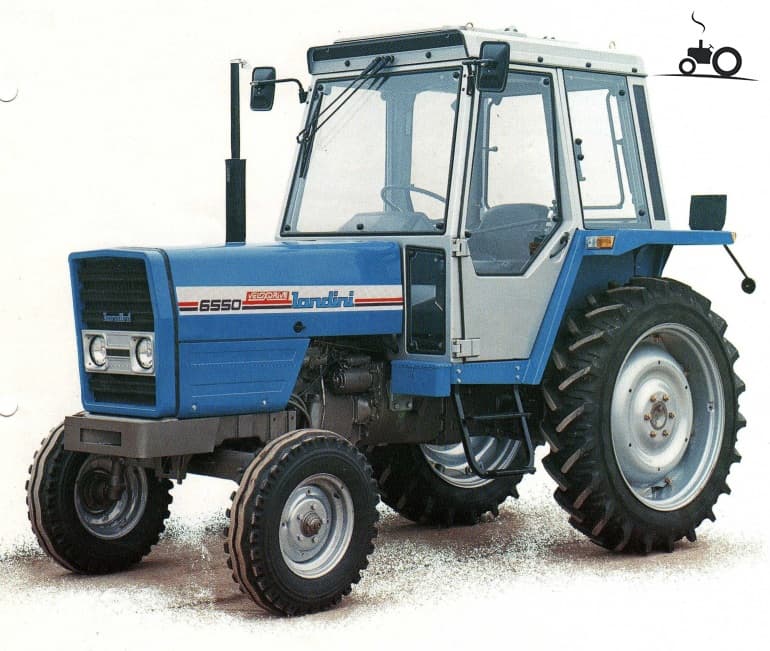

Landini 6550

Last Updated: June 2024

Overview

The Landini 6550 is a utility tractor well-suited for various agricultural tasks. Equipped with a Perkins A4.236 diesel engine, it offers a power output of 65 hp and operates at a rated RPM of 2200. The tractor comes in a 4x2 2WD configuration and features a 12-speed manual transmission with power steering. The 4-cylinder engine has a displacement of 235.8 cubic inches and a bore/stroke of 3.875x5.00 inches. For operating in a variety of terrains, its tire configuration is flexible, with options listed as 7.50-16 or 11.2-24 for the front, and 12.4-36 for the rear. The tractor's weight varies between 6725 lbs for a 2WD model to 7337 lbs for a 4WD model, making it a substantial and capable machine for medium-sized farm work. The height of the tractor can vary significantly, with a cabin height at 100.8 inches and hood height at 62.2 inches, accommodating diverse farming needs and operator preferences. The Landini 6550 showcases robustness and versatility with its solid build and range of features.
Show more...

Key Specifications

Category: Utility

Power Output: 65

Transmission: Manual

Drive Type: 2WD

Operating Weight: 6725 (2WD), 7337 (4WD)

Fuel Type: Diesel

Landini 6550 vs. Similar Tractors

Power Output
Average
Greater than 61% of similar tractors.
Operating Weight
Above Average
Greater than 79% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.236
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
235.8
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
65

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
156
Width (in)
-
Height (in)
100.8 (with cab), 62.2 (hood)
Operating Weight (lb)
6725 (2WD), 7337 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (implied by Rear Type II)
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (cab height provided, suggesting a cab option)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
