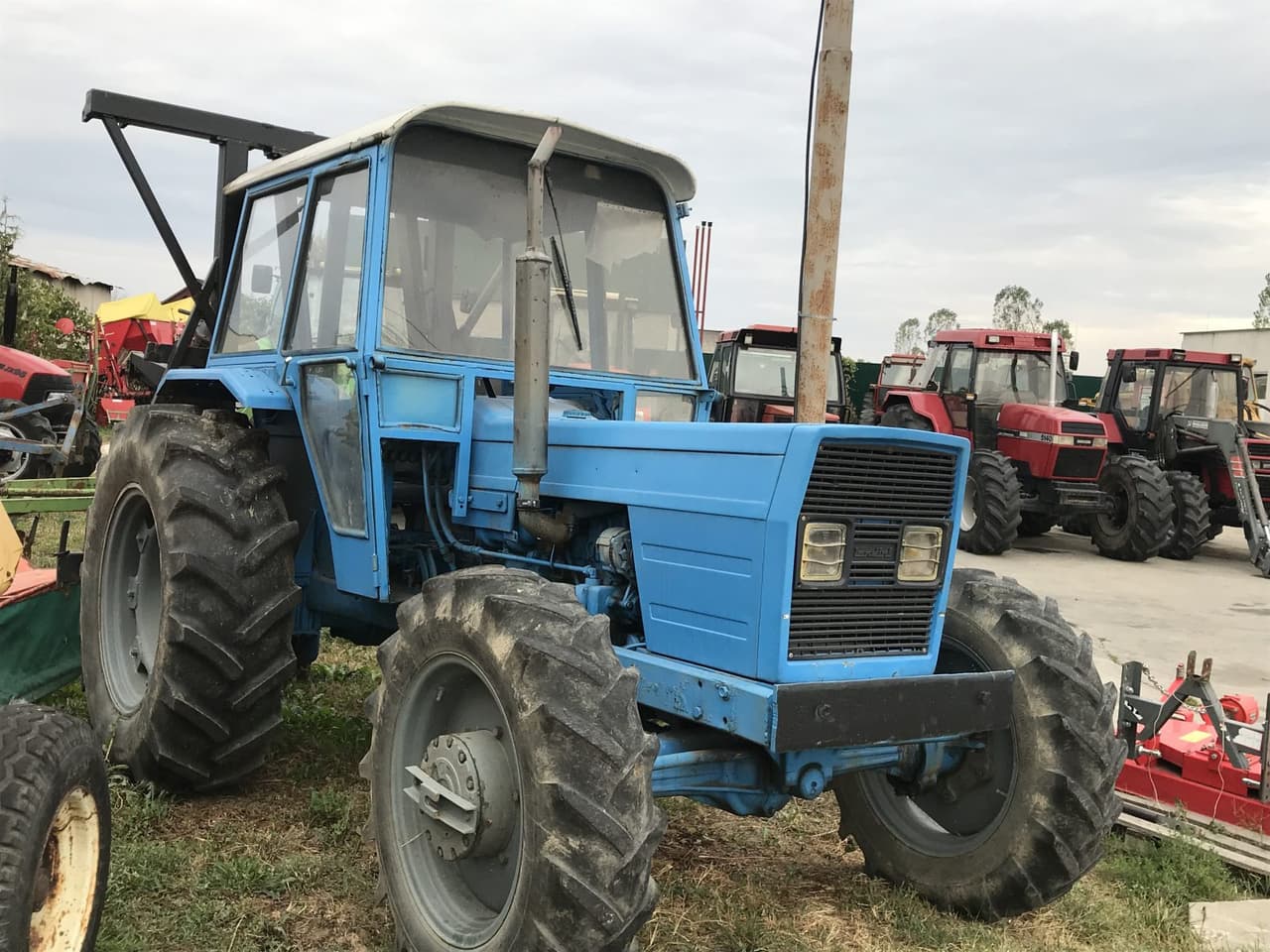

Landini 6500

Last Updated: June 2024

Overview

The Landini 6500 is a robust utility tractor suited for various agricultural tasks. Powered by the capable Perkins A4.236 diesel engine, it offers a displacement of 235.8 ci and delivers 65 horsepower at 2200 RPM. The engine's notable torque of 166.0 lb-ft is achieved at 1500 RPM, ensuring sufficient pulling power when required. It is a 2WD model with a mechanical steering system and a 12-speed transmission, allowing for versatility in operations. The tractor rides on agricultural tires with front measurements of 7.50-16 and rear measurements of 12.4-36, providing good traction on the farm fields. The Landini 6500 has a wheelbase of 87 inches and varies in height from 55.1 inches at the hood to 90.9 inches with the ROPS installed. The operating weight ranges from 4,878 to 5,490 pounds, depending on configuration, and it has a front axle clearance of 18.5 inches. This sturdy tractor maintains a classic design that ensures reliability and straightforward maintenance.
Show more...

Key Specifications

Category: Utility

Power Output: 65

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4878 to 5490

Fuel Type: Diesel

Landini 6500 vs. Similar Tractors

Power Output
Average
Greater than 61% of similar tractors.
Operating Weight
Above Average
Greater than 88% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.236
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
235.8
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
65

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
142.5
Width (in)
-
Height (in)
Height (hood): 55.1 | Height (ROPS): 90.9
Operating Weight (lb)
4878 to 5490

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
36
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
