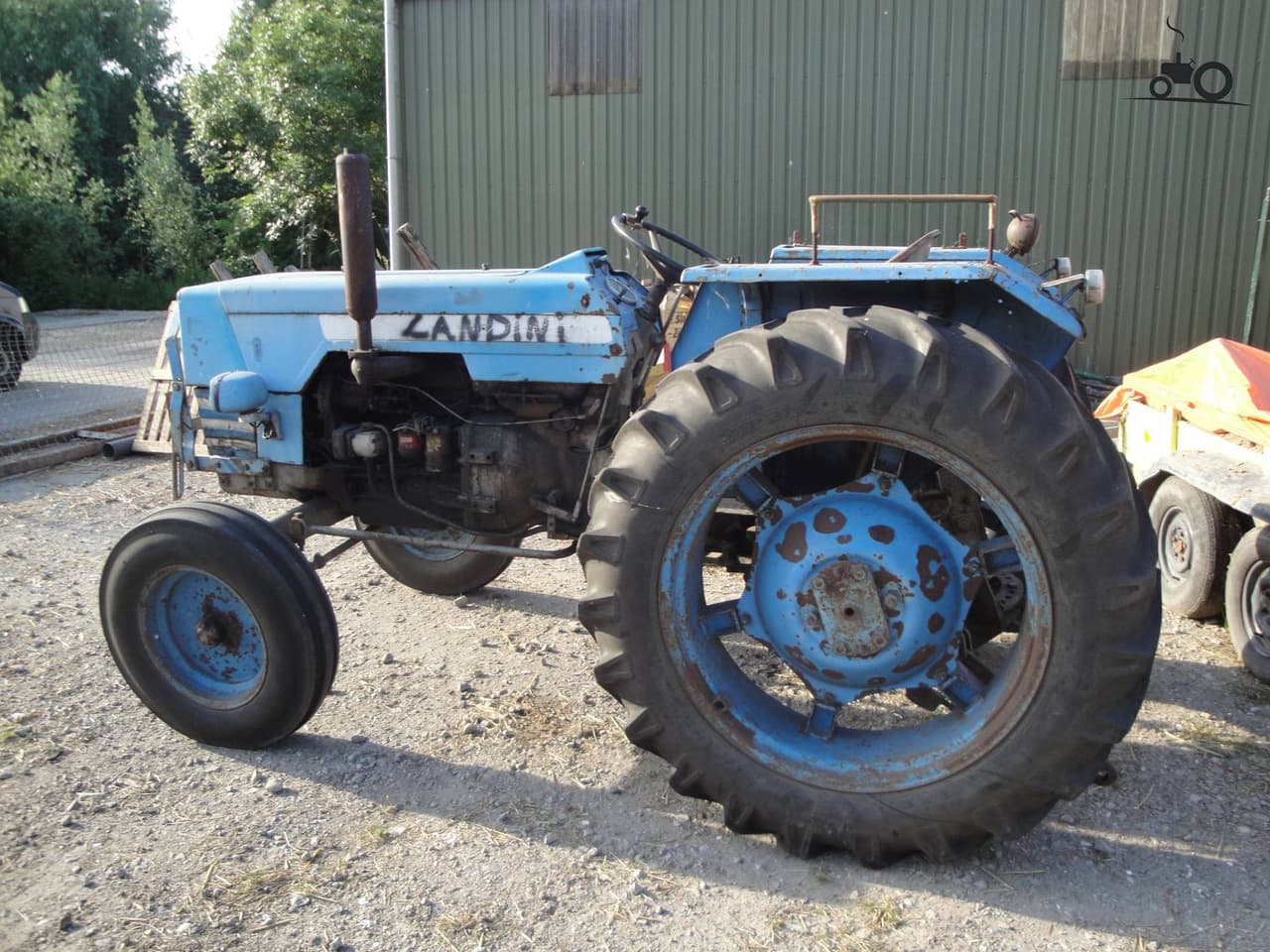

Landini 6070

Last Updated: June 2024

Overview

The Landini 6070 is a utility tractor known for its robust construction and versatility in a variety of farming applications. Equipped with a 12-speed mechanical shuttle transmission and hydrostatic power steering, it offers a smooth and comfortable operation. A 58 hp turbocharged Perkins diesel engine provides the power, and its liquid-cooled system ensures efficient thermal management. The engine is turbocharged, consisting of 3 cylinders with a displacement of 152.7 cubic inches and operates at a rated RPM of 2250, delivering a peak torque of 149 lb-ft at 1400 RPM. It has the chassis configuration of a 4x2 2WD, which, combined with its weight ranging from 5725 to 6350 pounds, suggests a stable and solid machine suitable for various tasks. Additional specifications such as the operator station type, hitch type, PTO speed, and specific tire types are not provided in this overview.
Show more...

Key Specifications

Category: Utility

Power Output: 58

Transmission: Mechanical shuttle

Drive Type: 2WD

Operating Weight: 5725 to 6350

Fuel Type: Diesel

Landini 6070 vs. Similar Tractors

Power Output
Average
Greater than 55% of similar tractors.
Operating Weight
Above Average
Greater than 89% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AT3.152
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
152.7
Bore (in)
3.6
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
58

Transmission

Type
Mechanical shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
128
Width (in)
-
Height (in)
-
Operating Weight (lb)
5725 to 6350

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
