Landini 6030

Last Updated: June 2024

Overview

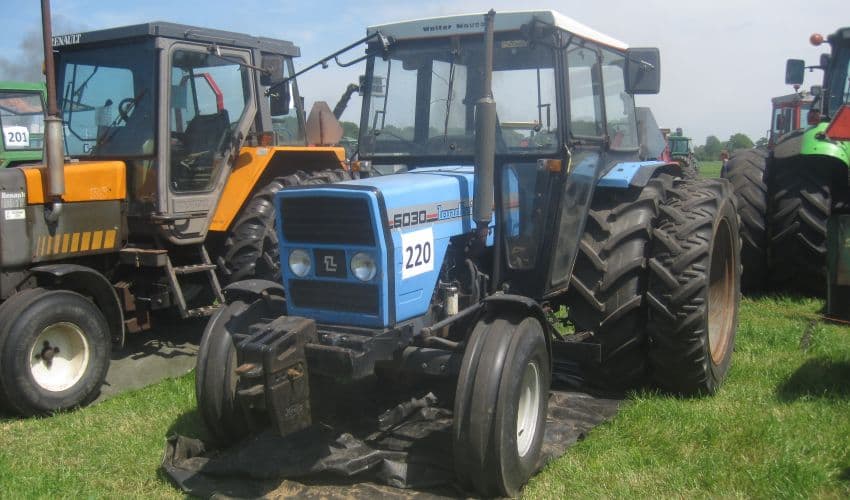

The Landini 6030 is a two-wheel drive (2WD) tractor equipped with a 56 horsepower (41.8 kW) turbocharged diesel engine, designed for a variety of agricultural tasks. Its power comes from a Perkins AT 3.1524 3-cylinder, liquid-cooled, turbocharged engine with a displacement of 152.7 cubic inches. A notable feature is its 12-speed transmission that includes 12 forward gears and 4 reverse, allowing for flexibility and control during operations. This tractor boasts a wheelbase of 83.9 inches and a varying operating weight between 4741 lbs for the 2WD option and 5292 lbs for the 4WD version, although the 4WD specs are not explicitly provided in the provided data. The front tire size is 7.50-18, and the rear tire size is 12.4-36, commonly found on agricultural tractors for optimal traction and stability. The overall length of this tractor is 148.8 inches, but other physical dimensions such as width and height were not specified. It incorporates power steering for ease of maneuverability and is likely to have been designed to accommodate various attachments such as loaders or hitch-mounted implements. The specific features related to the hitch type, hydraulic system, PTO, and operator station type were not available, nor was the manufacturing start and end years.
Show more...

Key Specifications

Power Output: 56

Drive Type: 2WD

Operating Weight: 4741 (2WD), 5292 (4WD)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
AT 3.1524
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
152.7
Bore (in)
3.6
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
56

Transmission

Type
-
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
148.8
Width (in)
-
Height (in)
-
Operating Weight (lb)
4741 (2WD), 5292 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
-
Rear Tire Diameter (in)
36
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
