Landini 5530F

Last Updated: June 2024

Overview

The Landini 5530F is an orchard/vineyard tractor equipped with a highly efficient 50 horsepower (37.3 kW) Perkins diesel engine. This tractor's powerplant features a 3-cylinder, liquid-cooled design with a displacement of 152.7 cubic inches. The 5530F possesses a robust synchromesh transmission with 12 forward and 4 reverse gears, allowing the operator to select the optimal speed for a variety of tasks. Its 4x2 2WD chassis and power steering contribute to its maneuverability within the confined spaces typical of orchard and vineyard settings. Further details regarding the engine's rated RPM and additional specifications such as tire dimensions, weight, and dimensions are not specified, and therefore the capabilities in these areas remain unknown.

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 50

Transmission: Syncromesh

Drive Type: 2WD

Fuel Type: Diesel

Image Gallery

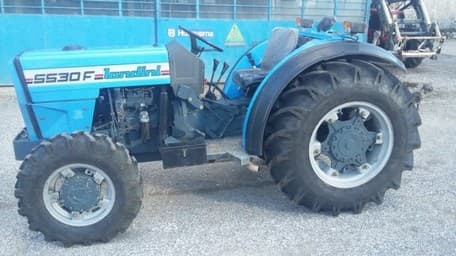

Landini 5530F Tractor

Landini 5530F vs. Similar Tractors

Power Output

Below Average

Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer: Perkins
Model: 3.152
Cooling Type: Liquid
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 152.7
Bore (in): 3.6
Stroke (in): 5
Rated RPM: -
Power Output (hp): 50

Transmission

Type: Syncromesh
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Category 2
Hitch Category: Category 2
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
