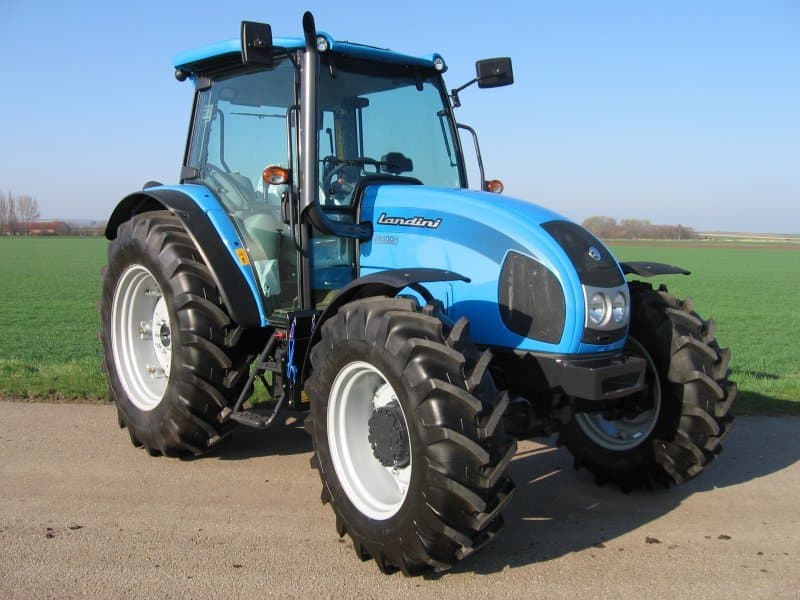

Landini 5-100H

Last Updated: June 2024

Overview

The Landini 5-100H is a 4-wheel drive tractor designed to meet a variety of agricultural needs. Equipped with a 92.5 horsepower turbocharged and aftercooled Perkins 1104D-44TA diesel engine, it features a liquid-cooling system, and a displacement of 268.5 cubic inches. The chassis designation 4x4 MFWD 4WD indicates a mechanical front-wheel drive setup that's common for tractors requiring additional traction. It has multiple transmission options, with the basic configuration providing 12 forward and reverse gears in a partial power shift with shuttle setup. With a wheelbase of 92 inches, an 8,030-pound operating weight, and dimensions measuring 163.8 inches in length and 83 inches in width, the tractor is robust and capable of handling significant tasks. The standard tire fitment includes 380/70R24 for the front and 480/70R34 for the rear. The tractor's heights are provided for both ROPS and cab configurations, though specific details about the operator station types are not mentioned. This tractor is ideal for farmers and landowners looking for a durable and versatile machine for their operations.
Show more...

Key Specifications

Power Output: 92.5

Transmission: Partial Power Shift with Shuttle

Drive Type: 4WD

Operating Weight: 8,030

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44TA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Aftercooled
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.13
Stroke (in)
5
Rated RPM
-
Power Output (hp)
92.5

Transmission

Type
Partial Power Shift with Shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
163.8
Width (in)
83
Height (in)
101 (Note: Height varies depending on ROPS or cab)
Operating Weight (lb)
8,030

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (Note: ROPS and cab heights provided, implying both types might be available)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
