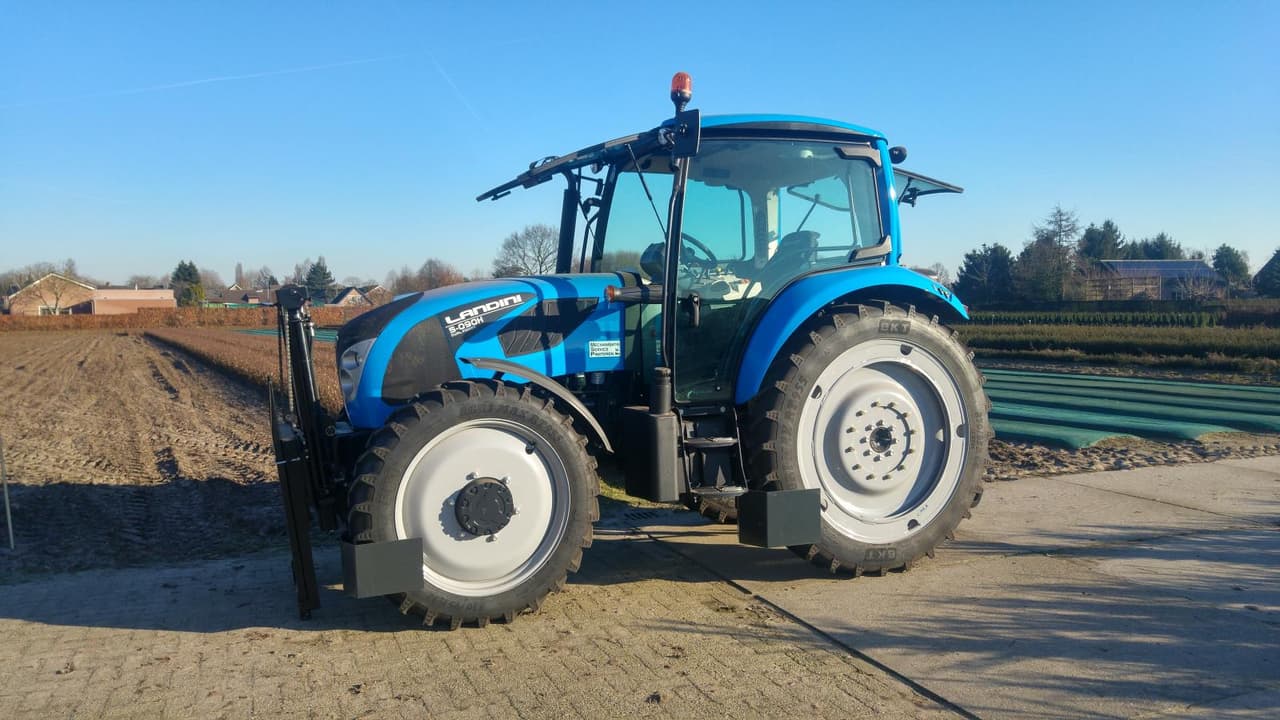

Landini 5-090H

Last Updated: June 2024

Overview

The Landini 5-090H is a robust utility tractor designed for various agricultural tasks. With a 4-cylinder, turbocharged Perkins 1104D-44T engine with a displacement of 268.5 cubic inches, the tractor is capable of delivering 83 horsepower. It is equipped with a partial power shift transmission and a shuttle feature, providing the operator with a total of 12 forward gears. The 4x4 MFWD 4WD chassis ensures appropriate handling over different terrains. Notably, the tractor adheres to Tier III emissions standards, making it an environmentally conscious choice for farming operations. The tractor's size is evident in its length, width, and height measurements of 163.8, 83, and 101 inches respectively, with an operating weight of 8030 pounds. Agrarian needs are further supported by its agricultural tires, sized 380/70R24 in front and 480/70R34 in the rear. The tractor's physical dimensions, including weight, wheelbase, and ground clearance, demonstrate its stability and capability for various tasks while maintaining a considerable presence on the field.
Show more...

Key Specifications

Category: Utility

Power Output: 83

Transmission: Partial power shift with shuttle

Drive Type: 4WD

Operating Weight: 8030

Fuel Type: Diesel

Landini 5-090H vs. Similar Tractors

Power Output
Above Average
Greater than 72% of similar tractors.
Operating Weight
Average
Greater than 57% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.13
Stroke (in)
5
Rated RPM
-
Power Output (hp)
83

Transmission

Type
Partial power shift with shuttle
Forward Gears
12
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
163.8
Width (in)
83
Height (in)
101
Operating Weight (lb)
8030

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
-
Rear Tire Diameter (in)
34
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
