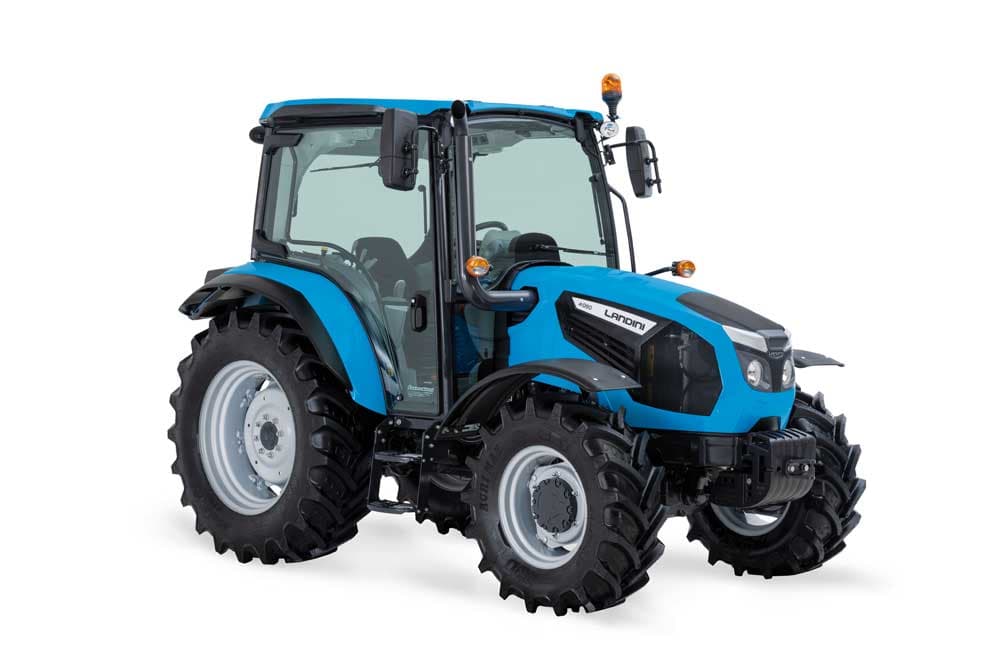

Landini 4-070

Last Updated: June 2024

Overview

The Landini 4-070 is a utility tractor designed to offer a balance of power and maneuverability for a wide range of agricultural tasks. It features a four-wheel drive (4WD) with a 4x4 MFWD chassis, making it capable in different terrains and conditions. Power is provided by a Deutz 4-cylinder liquid-cooled diesel engine rated at 68 horsepower with a peak power output of 72 hp, notable for its common rail fuel system and adherence to Interim Tier IV emissions standards using a cooled exhaust gas recirculation system with a diesel oxidation catalyst. The tractor offers a 12-speed partially synchronized transmission with a power shuttle and hydraulic wet disc clutch, as well as a power steering system to enhance maneuverability. The tractor is available with either a ROPS or cab configuration, weighing 6380 lbs and 7130 lbs respectively. Specification figures such as wheel dimensions and hitch lift capacity are not provided and remain unknown. Overall, the Landini 4-070 is built to deliver reliable performance and is suitable for various tasks in the utility sector of agricultural work.
Show more...

Key Specifications

Category: Utility

Power Output: 68

Transmission: Partially synchronized with power shuttle

Drive Type: 4WD

Operating Weight: ROPS Weight: 6380 | Cab Weight: 7130

Fuel Type: Diesel

Landini 4-070 vs. Similar Tractors

Power Output
Average
Greater than 63% of similar tractors.
Operating Weight
Above Average
Greater than 90% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
C4DT50
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
177
Bore (in)
3.62
Stroke (in)
4.33
Rated RPM
2200
Power Output (hp)
68

Transmission

Type
Partially synchronized with power shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
165
Width (in)
68.9
Height (in)
Height (ROPS): 111 | Height (cab): 97.2
Operating Weight (lb)
ROPS Weight: 6380 | Cab Weight: 7130

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II three-point hitch
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Optional ROPS or Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
