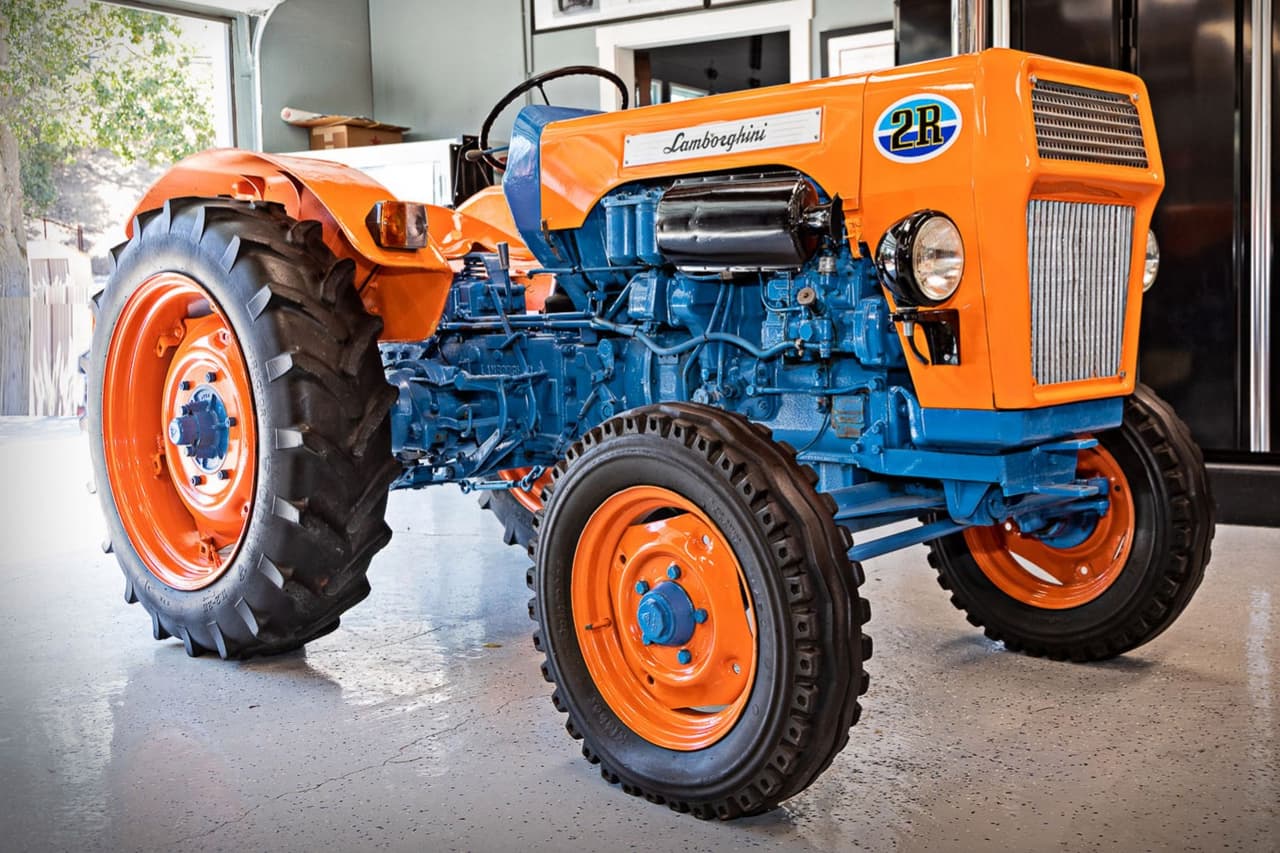

Lamborghini C583

Last Updated: June 2024

Overview

The Lamborghini C583 is a tractor model produced by the Italian manufacturer Lamborghini, partnered with SAME for the engine. The engine is a 3-cylinder, diesel, air-cooled model with a displacement of 165.7 cubic inches. It runs at a rated speed of 2300 RPM, though the power output is not specified. The transmission offers 8 forward gears and 4 reverse for varying operation needs. With a wheelbase of 54.1 inches, the tractor has a ranged operating weight between 6107 to 6548 pounds. The starter system is electric, ensuring reliable ignition. Specifics about the tractor’s dimensions, including a width variant and height, indicate the tractor may come in different configurations or models. Dimensions provided show significant variation (C583, C583L, C583S), suggesting different trims or use cases, but precise functionality and applications of each trim level remain unknown.
Show more...

Key Specifications

Operating Weight: 6107 to 6548

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
-
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
165.7
Bore (in)
3.86
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
-

Transmission

Type
-
Forward Gears
8
Reverse Gears
4
Total Gears
12

Dimensions

Length (in)
110.4
Width (in)
-
Height (in)
65.4
Operating Weight (lb)
6107 to 6548

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II (assumed from "Rear Type: II")
Hitch Category
Unknown (assuming "Category 3" is a mistake due to the provided "Rear Type: II")
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
