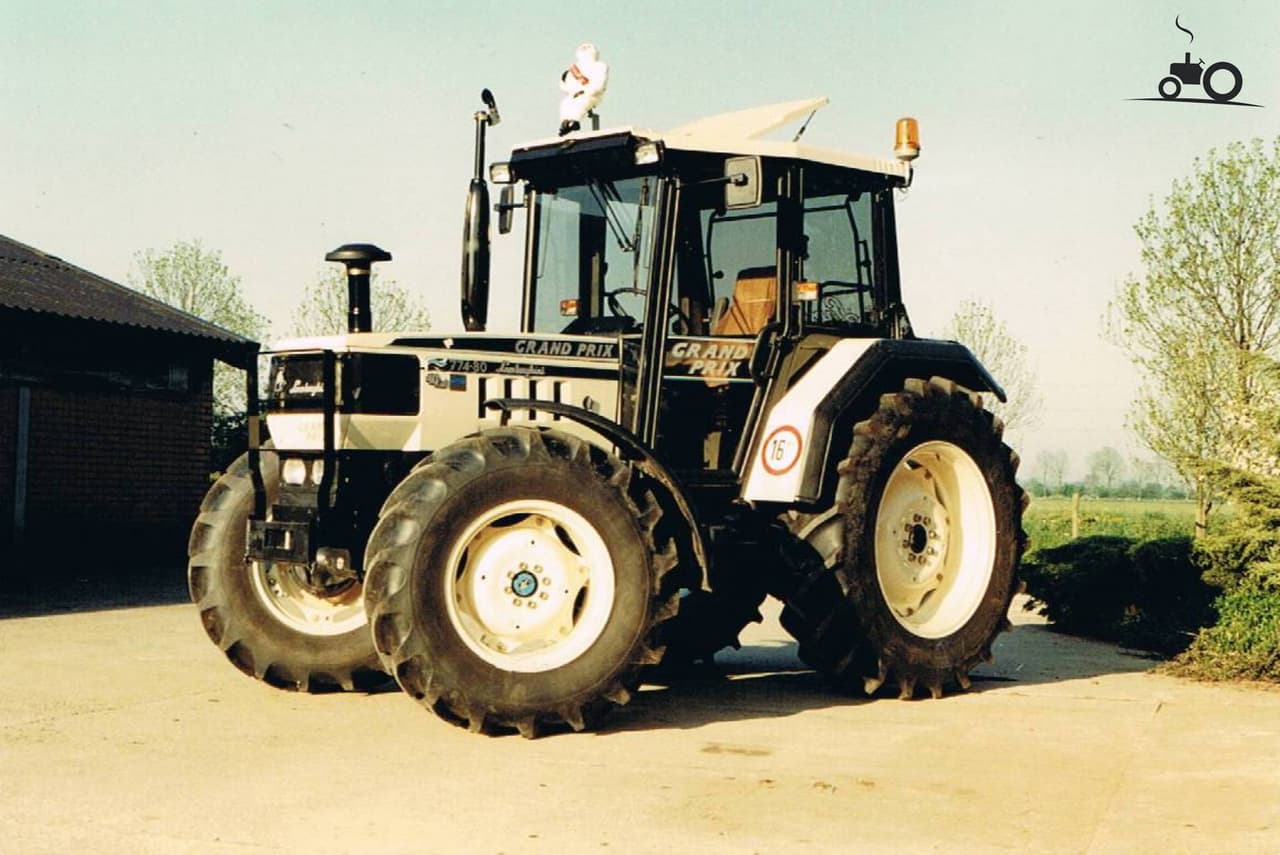

Lamborghini 774-80

Last Updated: June 2024

Overview

The Lamborghini 774-80 is a tractor built upon a 4x2 (2WD) chassis, specialized for use in various agricultural tasks. Its power steering system enhances maneuverability and ease of operation, which is particularly beneficial during extended working periods. The tractor is equipped with a robust 20-speed transmission, allowing for flexibility across a wide range of activities. At the heart of the 774-80 lies a 4-cylinder, liquid-cooled diesel engine provided by SAME, designated as the 1000.4W1. This engine features a displacement of 244.1 cubic inches, with a bore and stroke of 4.13 and 4.54 inches respectively, and operates at a rated RPM of 2500. Its power output stands at 80 hp, backed by a substantial torque of 210.2 lb-ft at just 1300 RPM, ensuring sufficient power and performance for various tasks. The ample wheelbase of 91.3 inches provides stability and supports the operating weight of 7706 pounds, making the 774-80 suitable for a range of agricultural applications.
Show more...

Key Specifications

Power Output: 80

Drive Type: 2WD

Operating Weight: 7706

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
1000.4W1
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
244.1
Bore (in)
4.13
Stroke (in)
4.54
Rated RPM
2500
Power Output (hp)
80

Transmission

Type
-
Forward Gears
20
Reverse Gears
20
Total Gears
-

Dimensions

Length (in)
160.6
Width (in)
73.6
Height (in)
103.5
Operating Weight (lb)
7706

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
