Lamborghini 583

Last Updated: June 2024

Overview

The Lamborghini 583 is a utility tractor designed predominantly for agricultural tasks. Built with a 4x2 two-wheel-drive chassis and manual steering, it features a 12-speed synchronized transmission with 12 forward and 3 reverse gears. Powering this machine is a 3-cylinder diesel engine produced by SAME, displacing 172.5 cubic inches at a rated 2300 RPM. It utilizes an air-cooled system to maintain engine temperature. The standard front tires are sized 6.00-16, while the rear tires are 13.6/12-28 for 2WD configuration. The Lamborghini 583 has an electric starter system and a dry disc clutch measuring 279.4mm. The operating weight for the 2WD model is listed at 4343 lbs. The tractor's height, measured to the exhaust, is 84.3 inches, but specific details regarding the tractor's body dimensions and other technical specifications are not fully documented.

Key Specifications

Category: Utility

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 4343 (2WD)

Fuel Type: Diesel

Image Gallery

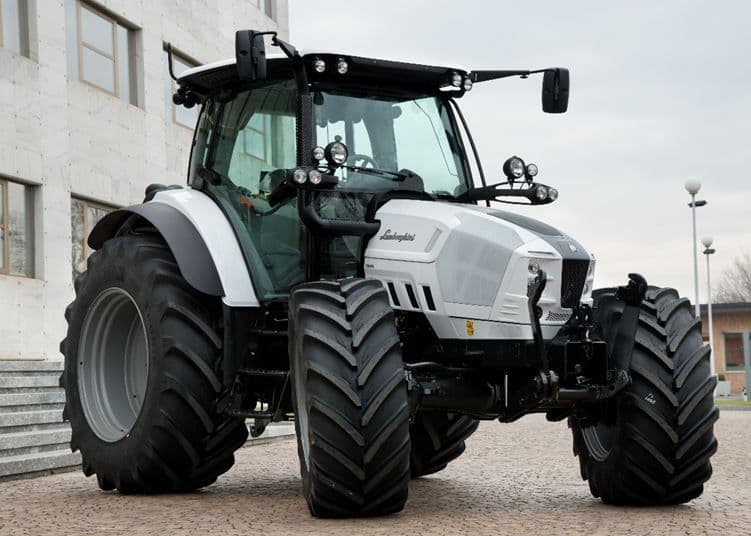

Lamborghini 583 Tractor

Lamborghini 583 vs. Similar Tractors

Operating Weight

Above Average

Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer: SAME
Model: -
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 172.5
Bore (in): 3.937
Stroke (in): 4.72
Rated RPM: 2300
Power Output (hp): -

Transmission

Type: Synchronized
Forward Gears: 12
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 129.9
Width (in): -
Height (in): 84.3 (Exhaust)
Operating Weight (lb): 4343 (2WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: II
Hitch Category: 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
