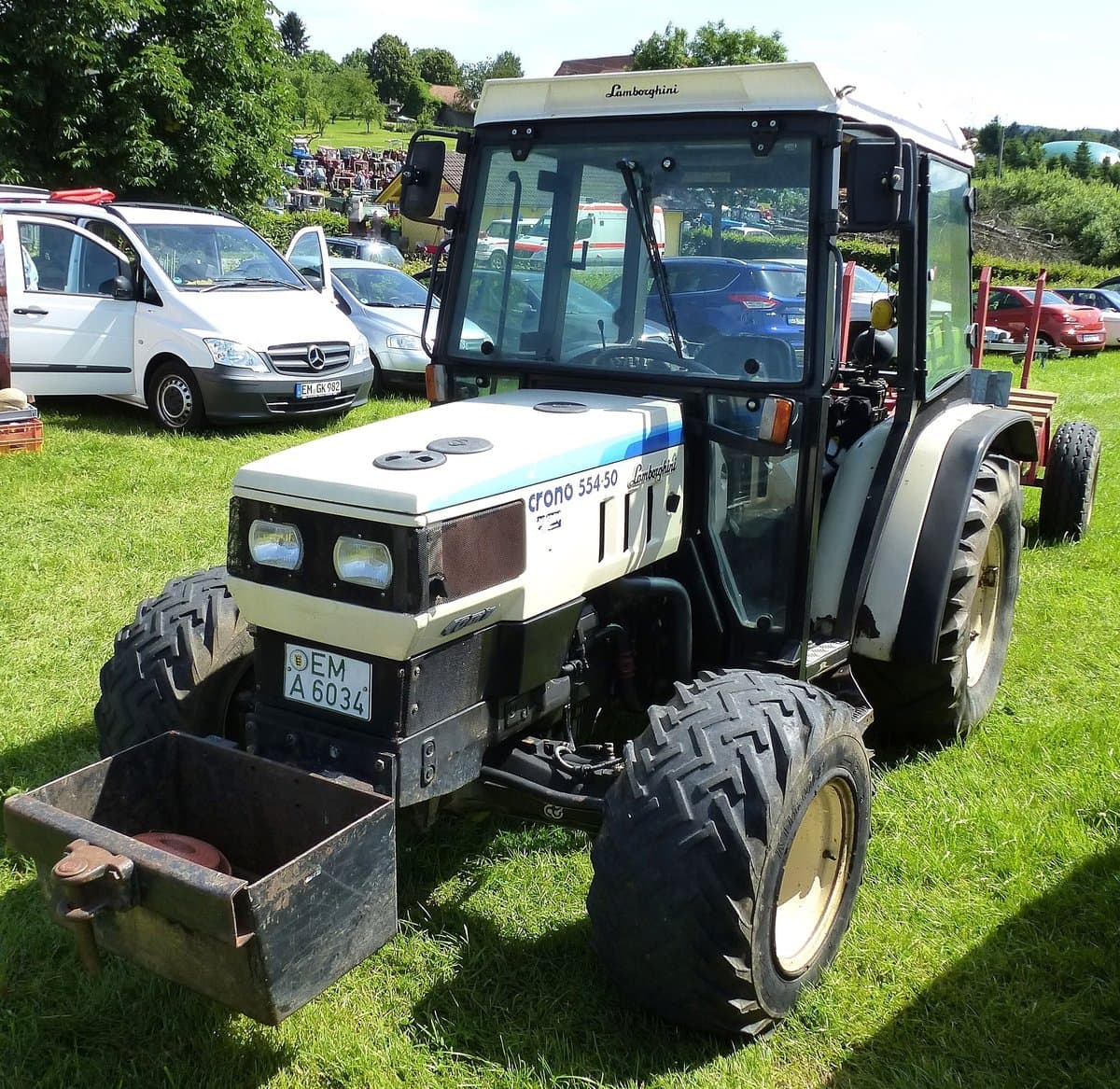

Lamborghini 554-50 Crono

Last Updated: June 2024

Overview

The Lamborghini 554-50 Crono tractor is an air-cooled, diesel-powered tractor featuring either a 2WD or 4WD wheelbase designed for a variety of agricultural tasks. The engine, built by SAME, is a three-cylinder 1000.3 A model with a displacement of 183.1 cubic inches, delivering a power output of 49.6 hp at a rated RPM of 2350. This tractor comes with a choice of transmission types, including a mechanical shuttle and a creeper, with up to 24 forward and 12 reverse gears. Weights range from 4277 pounds for the 2WD configuration to 4740 pounds for the 4WD. The lengths and widths of the tractor stand at 133.1 inches and 64.6 inches, respectively, with varied heights depending on whether it is measured to the hood, steering wheel, or the ROPS. While much of the critical specification data is known, some information, particularly regarding the hydraulics, PTO speeds, and start/end years of manufacture, remains unavailable.
Show more...

Key Specifications

Power Output: 49.6

Transmission: Mechanical shuttle, Creeper

Drive Type: 4WD, 2WD

Operating Weight: 4277 (2WD), 4740 (4WD)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
1000.3 A
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated (Assumed as no forced induction mentioned)
Cylinders
3
Displacement (ci)
183.1
Bore (in)
4.134
Stroke (in)
4.547
Rated RPM
2350
Power Output (hp)
49.6

Transmission

Type
Mechanical shuttle, Creeper
Forward Gears
8, 12, 16, 24 (Depending on transmission type)
Reverse Gears
8, 12 (Depending on transmission type)
Total Gears
-

Dimensions

Length (in)
133.1
Width (in)
64.6
Height (in)
53.4 (Hood), 59.3 (Steering wheel), 88.4 (ROPS)
Operating Weight (lb)
4277 (2WD), 4740 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD, 2WD
Steering Type
-
Coolant Capacity (qts)
Unknown (Assuming air-cooled engines do not have a typical coolant system)
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-point hitch (Assumed as "Rear Type: II" is mentioned)
Hitch Category
Category 2
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS (Roll Over Protection System) (Assumed as ROPS height is mentioned)
Starter Type
Electric (Assumed as "Engine - Starter volts: 12" is mentioned)
Brake Type
-
Hydraulic System Type
-
