Lamborghini 1056

Last Updated: June 2024

Overview

The Lamborghini 1056 is a tractor that was manufactured by Lamborghini between 1977 and 1984. Available in both 2WD and 4WD versions, this tractor was powered by a liquid-cooled, six-cylinder diesel engine with two different engine displacements of either 331.3 ci or 335.6 ci, producing 105 hp at 2200 rpm. The tractor featured hydrostatic power steering, a 12-speed manual transmission with 12 forward and 3 reverse gears, and was standard equipped with a cab. The Lamborghini 1056 had a wheelbase of 107.5 inches and operated at a weight range of 9569 to 10407 pounds. Its lift capacity at the hitch ends was capable of handling up to 11,025 lbs.

Key Specifications

Power Output: 105

Transmission: Manual

Drive Type: 2WD or 4WD

Operating Weight: 9569 to 10407

Fuel Type: Diesel

Lift Capacity: 11,025

Image Gallery

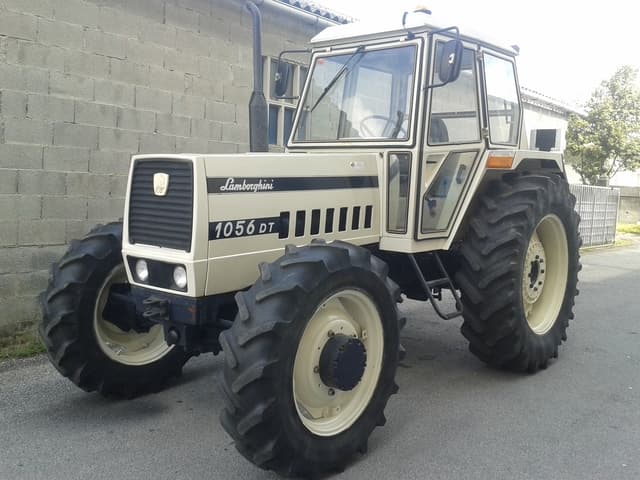

Lamborghini 1056 Tractor

Technical Specifications

Engine

Manufacturer: -
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 6
Displacement (ci): 331.3 or 335.6
Bore (in): 3.86 or 4.06
Stroke (in): 4.72 or 4.33
Rated RPM: 2200
Power Output (hp): 105

Transmission

Type: Manual
Forward Gears: 12
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 163.8
Width (in): 89.4
Height (in): 105.5
Operating Weight (lb): 9569 to 10407

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD or 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1984
Hitch Type: -
Hitch Category: Category II
Hitch Position: Rear
Hitch Capacity (lb): 11,025
Operator Station Type: Cab (standard)
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
