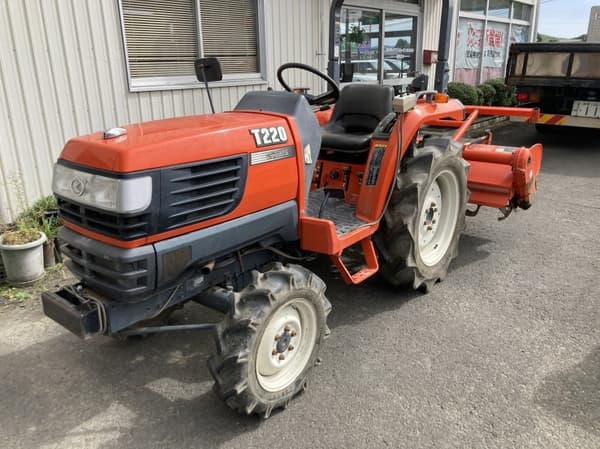

Kubota T220

Last Updated: September 2024

Overview

The Kubota T220 is a compact utility tractor designed for various farm and landscaping tasks. It features a 4-wheel drive system, making it capable of handling tough terrain. The tractor is powered by a Kubota D1403 engine, which is a 3-cylinder, liquid-cooled diesel engine. This engine produces 21.7 horsepower, which is on the lower end compared to other tractors in its class.

The T220 has a small engine displacement of 85 cubic inches, which is below average for tractors. However, it makes up for this with a high engine speed of 2600 rpm, which is above average. The tractor's compact size, measuring 110.4 inches long, 45.3 inches wide, and 74.6 inches tall, makes it easy to maneuver in tight spaces. It comes with agricultural tires on both front and rear, and offers options for different rear tire sizes. The tractor also features a hydrostatic transmission with three ranges, allowing for smooth and easy operation.
Show more...

Key Specifications

Category: Utility

Power Output: 22 hp (16.2 kW)

Drive Type: 4WD

Fuel Type: Diesel

Kubota T220 vs. Similar Tractors

Power Output

The Power Output for the Kubota T220 is Below Average. It is greater than 11% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Kubota T220 is Below Average. It is greater than 15% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Kubota T220 is Above Average. It is greater than 77% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1403
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
3
Displacement
85 ci (1.4 L)
Bore
3.10 in (78.7 mm)
Stroke
3.60 in (91.4 mm)
Rated RPM
2600
Power Output
22 hp (16.2 kW)

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
