Kubota T22

Last Updated: September 2024

Overview

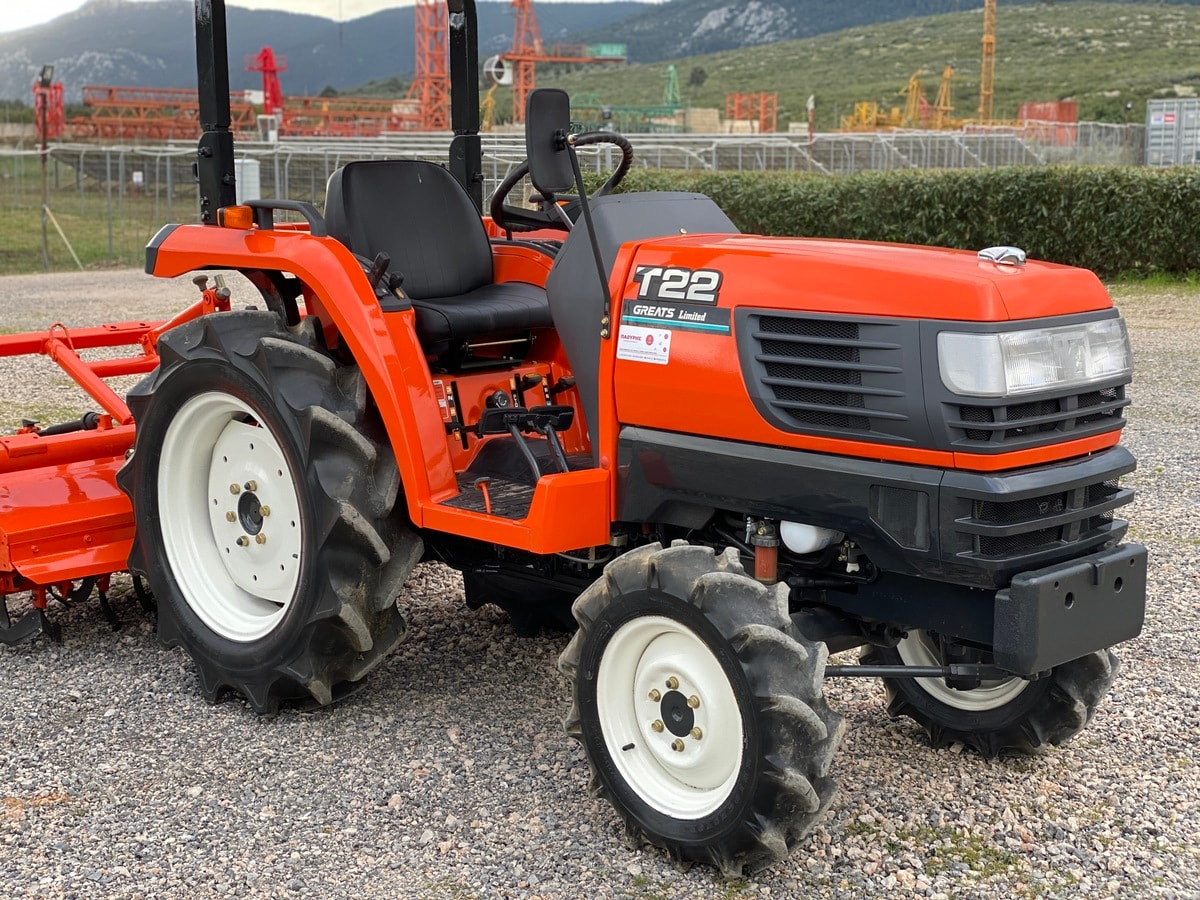

The Kubota T22 is a compact utility tractor designed for various farm and landscaping tasks. It features a 4x4 mechanical front-wheel drive system, making it capable of handling tough terrain. The tractor is powered by a Kubota D1403 diesel engine with three cylinders and natural aspiration. This engine produces 21.6 horsepower, which is below average for its class but suitable for lighter duties.

The T22 comes with a gear transmission offering 12 forward and 4 reverse speeds, giving operators good control over their work pace. It has a relatively small size, measuring 110.4 inches long, 45.3 inches wide, and 74.6 inches tall. The tractor's operating weight of 1,940 pounds is on the lighter side, making it easy to maneuver in tight spaces. It features agricultural tires on both front and rear, a rear hitch for attaching implements, and an electric starter for easy operation. With its compact build and versatile features, the Kubota T22 is well-suited for small farms, large gardens, or light commercial use.
Show more...

Key Specifications

Category: Utility

Power Output: 22 hp (16.1 kW)

Transmission: Gear

Drive Type: MFWD - Mechanical Front Wheel Drive

Operating Weight: 1940 lb (880 kg)

Fuel Type: Diesel

Kubota T22 vs. Similar Tractors

Power Output

The Power Output for the Kubota T22 is Below Average. It is greater than 12% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 0.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Kubota T22 is Below Average. It is greater than 13% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 0.5K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Kubota T22 is Below Average. It is greater than 17% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Kubota T22 is Above Average. It is greater than 78% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1403
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement
85 ci (1.4 L)
Bore
3.10 in (78.7 mm)
Stroke
3.60 in (91.4 mm)
Rated RPM
2600
Power Output
22 hp (16.1 kW)

Transmission

Type
Gear
Forward Gears
12
Reverse Gears
4

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
MFWD - Mechanical Front Wheel Drive
