Kubota STV40

Last Updated: June 2024

Overview

The Kubota STV40 is a compact utility tractor equipped with a Kubota D1803M diesel engine. It operates with a hydrostatic transmission which includes an infinite (3-range) set of gears for diverse speed control, suitable for a variety of tasks and terrains. The model is notable for its 4x4 MFWD 4WD chassis, providing excellent traction and power efficiency. Standard features include power steering for ease of handling and multiple tire options to cater to different working conditions, ranging from agricultural to industrial applications. With a lift capacity that fits Category 1 hitch specifications, the STV40 is a versatile working partner. It has a rated power of 34.7 gross horsepower, with a slight bump measured under ECE R24 rating conditions at 37.8 horsepower. It served its users well from 2006 until the end of its production in 2014.

Key Specifications

Category: Utility

Power Output: 34.7 gross hp, 37.8 hp (ECE R24)

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: ROPS Weight: 2150, Cab Weight: 2502

Fuel Type: Diesel

Image Gallery

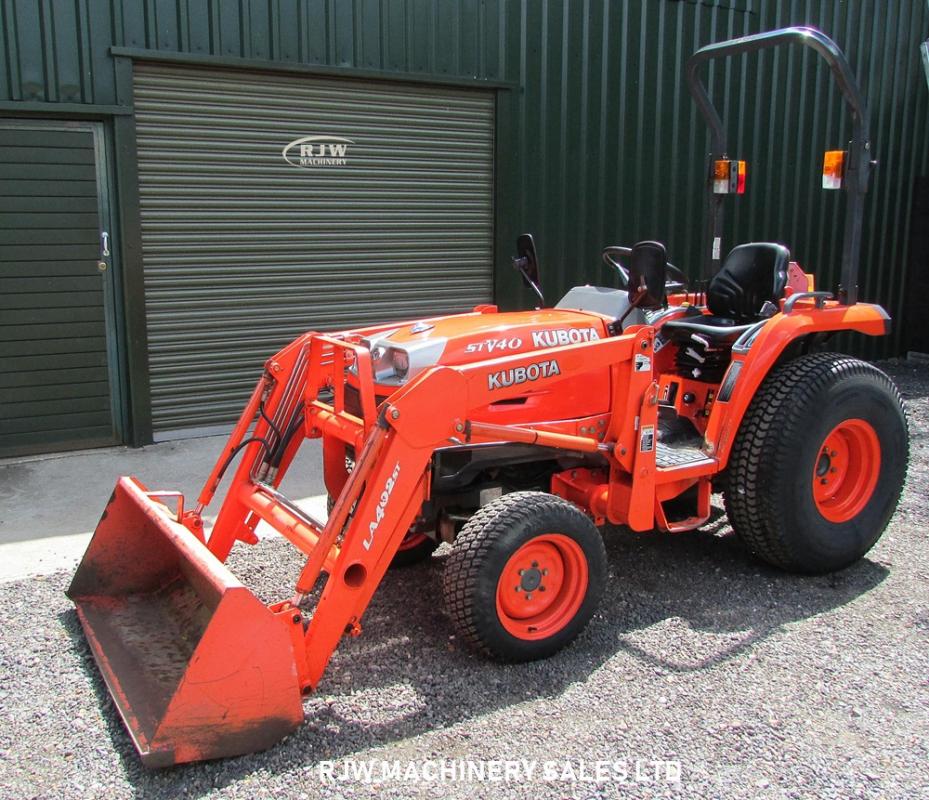

Kubota STV40 Tractor

Kubota STV40 vs. Similar Tractors

Operating Weight

Below Average

Greater than 17% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1803M
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 111.4
Bore (in): 3.4
Stroke (in): 4
Rated RPM: 2700
Power Output (hp): 34.7 gross hp, 37.8 hp (ECE R24)

Transmission

Type: Hydrostatic
Forward Gears: -
Reverse Gears: -
Total Gears: Infinite (3-range)

Dimensions

Length (in): 105.5
Width (in): 48
Height (in): Height (ROPS): 92.5, Height (cab): 85
Operating Weight (lb): ROPS Weight: 2150, Cab Weight: 2502

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag: Front: 6.00-12, Rear: 9.5-22 | Turf: Front: 24x8.50-14, Rear: 13.6-16 | Industrial: Front: 23x8.50-14, Rear: 12.4-16
Manufacture - End Year: 2014
Hitch Type: Category I 3-point hitch
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS or Cab available
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
