Kubota STV36

Last Updated: June 2024

Overview

The Kubota STV36 is a compact utility tractor that was manufactured by Kubota between 2006 and 2014. The tractor features a 4x4 MFWD 4WD chassis, power steering, and a hydrostatic transmission with infinite (3-range) gearing for both forward and reverse operations. It is equipped with a 35.9 hp Kubota D1703M three-cylinder diesel engine, with a liquid cooling system and rated at 2700 RPM. The tractor has versatility with multiple tire options for agricultural, lawn/turf, and industrial needs. This model has a wheelbase of 63.4 inches and is offered with either a ROPS or a cab, the former having an operating weight of 2150 pounds and the latter 2502 pounds. It has a height of either 85 inches with the cab or 92.5 inches with the ROPS. The tractor's rated power and sturdy build make it suitable for a wide range of tasks in various settings.

Key Specifications

Category: Utility

Power Output: 35.9

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2150 (ROPS), 2502 (Cab)

Fuel Type: Diesel

Image Gallery

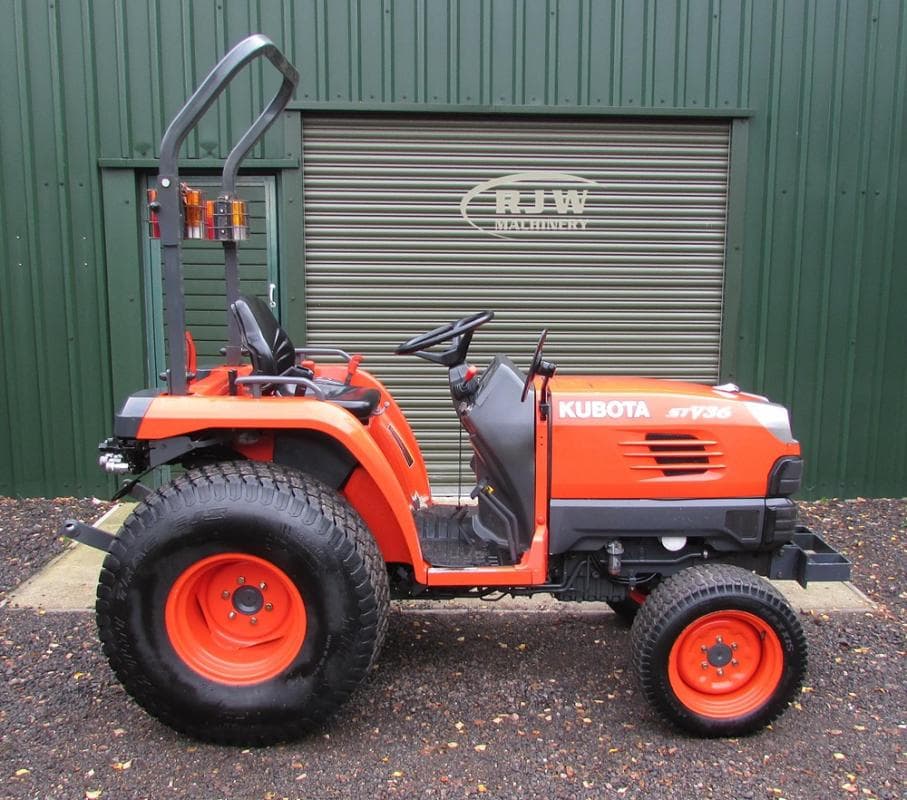

Kubota STV36 Tractor

Kubota STV36 vs. Similar Tractors

Power Output

Average

Greater than 32% of similar tractors.

Operating Weight

Below Average

Greater than 17% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1703M
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 100.5
Bore (in): 3.43
Stroke (in): 3.64
Rated RPM: 2700
Power Output (hp): 35.9

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite (3-range)
Total Gears: -

Dimensions

Length (in): 105.5
Width (in): 48
Height (in): 92.5 (ROPS), 85 (Cab)
Operating Weight (lb): 2150 (ROPS), 2502 (Cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 24 (Lawn/turf), 23 (Industrial), Unknown (Standard AG)
Front Tire Width (in): 8.50 (Lawn/turf), 8.50 (Industrial), Unknown (Standard AG)
Rear Tire Diameter (in): 16 (Lawn/turf), 16 (Industrial), Unknown (Standard AG)
Rear Tire Width (in): 13.6 (Lawn/turf), 12.4 (Industrial), Unknown (Standard AG)
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/Turf, Industrial
Manufacture - End Year: 2014
Hitch Type: Category 1
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: ROPS, Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
