Kubota STA-35

Last Updated: June 2024

Overview

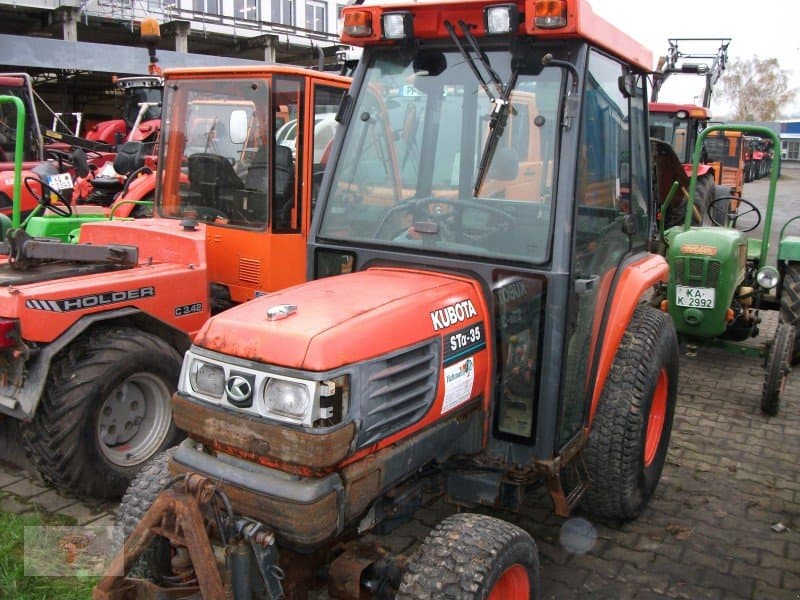

The Kubota STA-35 is a compact utility tractor which was manufactured between 2002 and 2005. It is designed with a four-wheel drive (4x4 MFWD 4WD) chassis and features power steering for easier maneuverability. This tractor runs on a Kubota D1703 three-cylinder diesel engine with a displacement of 100.5 cubic inches, rated at 35.9 horsepower, and with a liquid-cooling system to manage engine temperature. The engine is paired with a hydrostatic transmission offering an infinite range of forward and reverse gears which provides versatility and precision in speed selection for various tasks. The tractor's height is 92.5 inches with ROPS and it runs on standard agricultural tires, with alternatives for lawn and turf use available. This model is equipped with a Category I hitch. The STA-35 is a practical choice for a range of duties around a small farm or rural property, from mowing to tilling, and it is known for its reliability and user-friendly operation.
Show more...

Key Specifications

Category: Utility

Power Output: 35.9

Transmission: Hydrostatic

Drive Type: 4WD

Fuel Type: Diesel

Kubota STA-35 vs. Similar Tractors

Power Output
Average
Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1703
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
3
Displacement (ci)
100.5
Bore (in)
3.43
Stroke (in)
3.64
Rated RPM
2700
Power Output (hp)
35.9

Transmission

Type
Hydrostatic
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
92.5 (ROPS)
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
6.1
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
12 / 22 (Assumed based on standard tyre sizes)
Tire Type
Ag: Front 6.00-12, Rear 9.5-22; Lawn/turf: Front 24x8.50-14, Rear 13.6-16
Manufacture - End Year
2005
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
