Kubota SMZ955

Last Updated: June 2024

Overview

The Kubota SMZ955 is a utility tractor equipped with a 93.7 horsepower Kubota V3800-T engine. It features a liquid-cooled, turbocharged diesel engine with four cylinders and a displacement of 230 cubic inches. The tractor supports a 4WD chassis configuration, known as 4x4 MFWD 4WD, and uses an electro-hydraulic wet disc clutch to manage its 24 forward and reverse gears. It has a wheelbase of 88.6 inches and an operating weight of 7165 pounds with an added comfort feature of a cab for the operator's station. This model was manufactured by Kubota from 2011 to 2014. Given its robust power and versatile capabilities, it is well suited for a variety of utility tasks on the farm or worksite.

Key Specifications

Category: Utility

Power Output: 93.7

Drive Type: 4WD

Operating Weight: 7165

Fuel Type: Diesel

Image Gallery

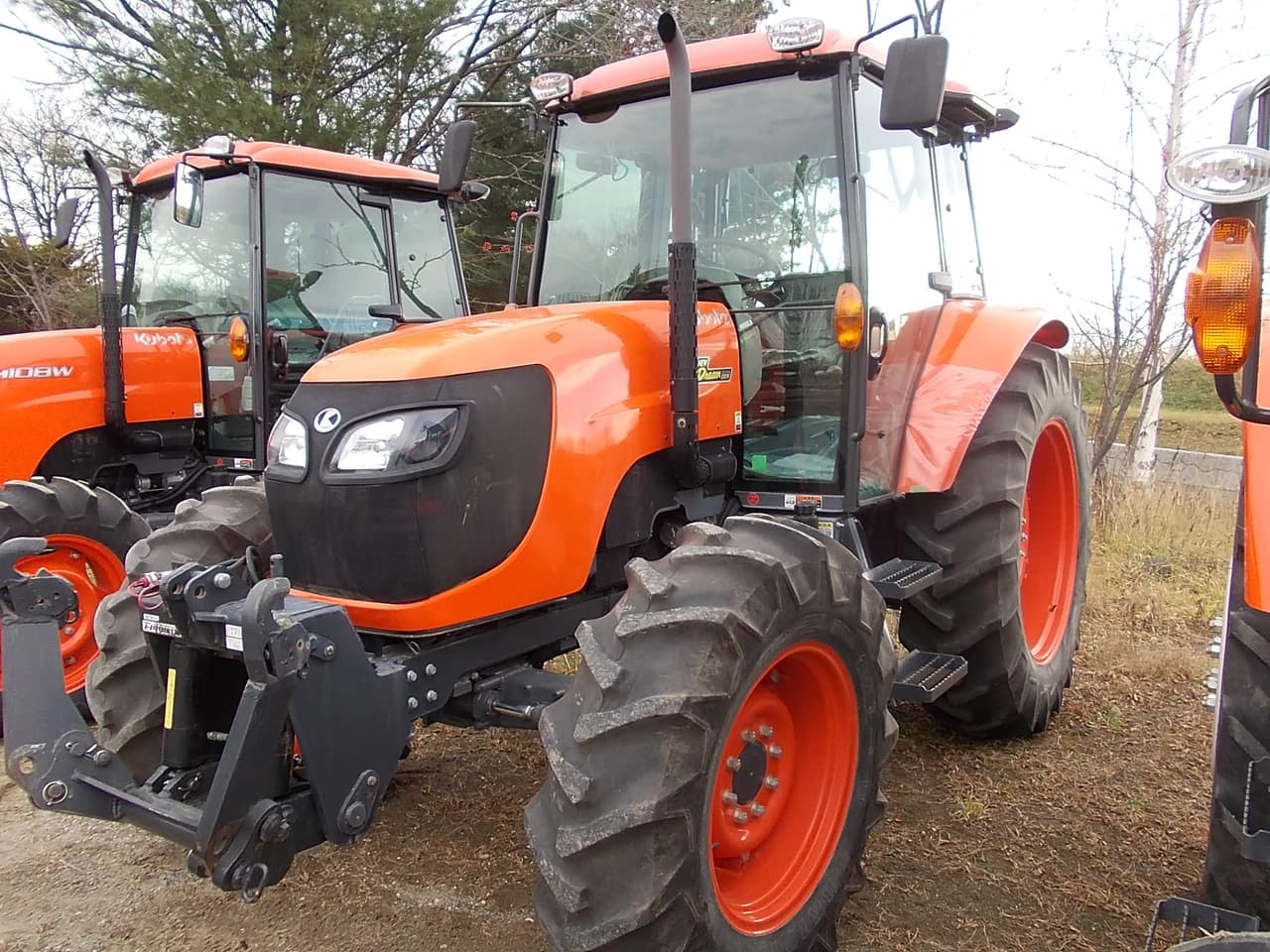

Kubota SMZ955 Tractor

Kubota SMZ955 vs. Similar Tractors

Power Output

Above Average

Greater than 78% of similar tractors.

Operating Weight

Average

Greater than 53% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V3800-T
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: 16-valve
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 230
Bore (in): 3.94
Stroke (in): 4.72
Rated RPM: 2600
Power Output (hp): 93.7

Transmission

Type: -
Forward Gears: 24
Reverse Gears: 24
Total Gears: 48

Dimensions

Length (in): 155.7
Width (in): 76.4
Height (in): 101.8
Operating Weight (lb): 7165

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 24
Front Tire Width (in): 11.2
Rear Tire Diameter (in): 34
Rear Tire Width (in): 16.9
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 2014
Hitch Type: Category II
Hitch Category: 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
