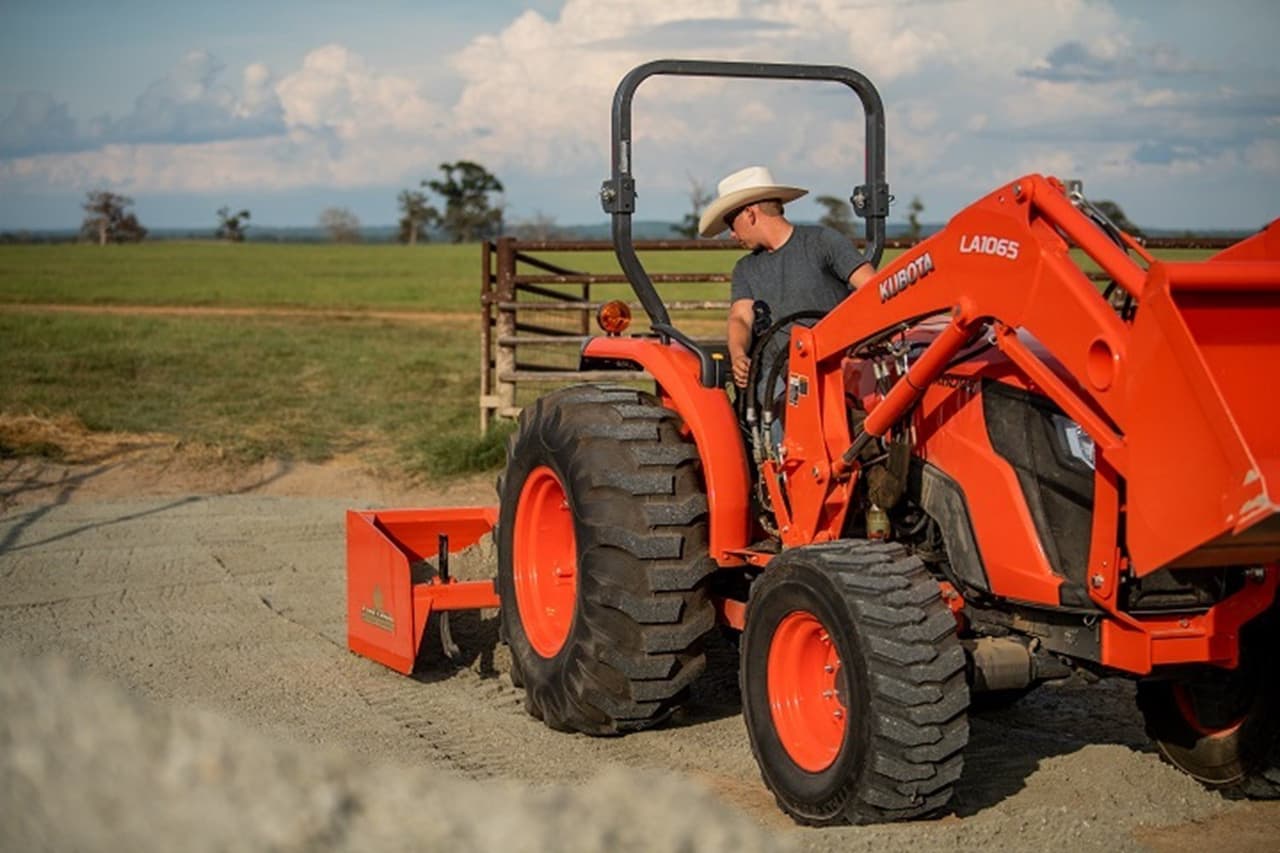

Kubota MX5200FRC

Last Updated: June 2024

Overview

The Kubota MX5200FRC is a utility tractor capable of a range of tasks from estate management to commercial landscaping and small farm operations. It is powered by a Kubota V2403CR-T four-cylinder turbocharged engine with a gross horsepower output of 54.7 hp and net power of 52.1 hp. A displacement of 148.6 cubic inches ensures adequate torque for demanding jobs. The tractor features an 8-forward and 8-reverse gear transmission system, allowing for significant versatility in speed and power distribution. With a Category 3 hitch and a lifting capacity of approximately 2314.9 lbs at 24 inches, it offers robust performance for various attachments. The PTO power stands at 45.7 hp with a PTO speed of 540 rpm, suitable for operating a wide range of implements. Its operating weight is 3717 lbs, reflecting its sturdy construction and suitability for tasks requiring stability and traction. Notable for its hydraulic pump flow capacity, it can deliver 9.5 gallons per minute, enhancing the efficiency of hydraulically powered implements.
Show more...

Key Specifications

Category: Utility

Power Output: 54.7

Operating Weight: 3717

Lift Capacity: 2314.9 lbs

Kubota MX5200FRC vs. Similar Tractors

Power Output
Average
Greater than 52% of similar tractors.
Hitch Capacity
Average
Greater than 39% of similar tractors.
Operating Weight
Average
Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V2403CR-T
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
148.6
Bore (in)
-
Stroke (in)
-
Rated RPM
-
Power Output (hp)
54.7

Transmission

Type
-
Forward Gears
8
Reverse Gears
8
Total Gears
16

Dimensions

Length (in)
125.2
Width (in)
-
Height (in)
96
Operating Weight (lb)
3717

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
2314.9 lbs
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
