Kubota MX4700

Last Updated: June 2024

Overview

The Kubota MX4700 is an adaptable utility tractor that was part of the MX series manufactured by Kubota between 2009 and 2014. This model comes in both two-wheel (2WD) and four-wheel drive (4WD) options with manual partially synchronized transmission featuring 8 forward and reverse gears or a hydrostatic transmission with infinite ranges in forward and reverse. It's powered by a Kubota V2403, a 2.4 L four-cylinder diesel engine providing 48 horsepower at 2700 RPM. The tractor is equipped with a three-point hitch and has a hydraulic system with an open center design, as well as mechanical wet disc brakes for reliable stopping power. The operator station features a two-post foldable ROPS for protection. This tractor is well-suited for various tasks around a farm or property, thanks to its versatility and robust design.

Key Specifications

Category: Utility

Power Output: 48

Transmission: Partially synchronized or Hydrostatic

Operating Weight: 3362 (2WD gear type) to 3770 (4WD hydro type)

Fuel Type: Diesel

Image Gallery

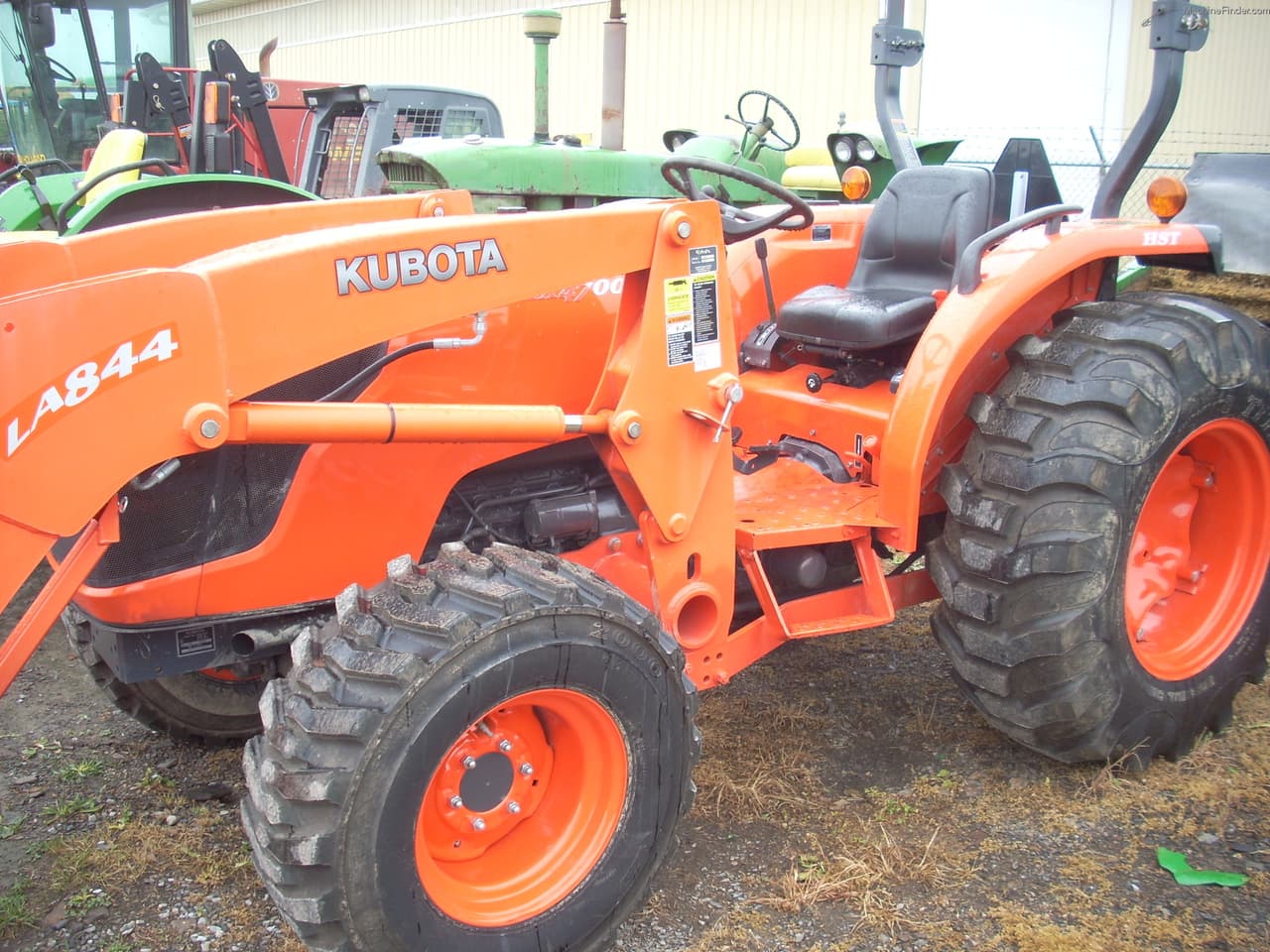

Kubota MX4700 Tractor

Kubota MX4700 vs. Similar Tractors

Power Output

Average

Greater than 46% of similar tractors.

Operating Weight

Excellent

Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V2403
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 148.5
Bore (in): 3.43
Stroke (in): 4.03
Rated RPM: 2700
Power Output (hp): 48

Transmission

Type: Partially synchronized or Hydrostatic
Forward Gears: 8 (for partially synchronized transmission)
Reverse Gears: 8 (for partially synchronized transmission)
Total Gears: -

Dimensions

Length (in): 127.6 (2WD) or 122.8 (4WD)
Width (in): 69.7
Height (in): 95.7
Operating Weight (lb): 3362 (2WD gear type) to 3770 (4WD hydro type)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): 7.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 26 (for 2WD)
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2014
Hitch Type: Three-Point Hitch
Hitch Category: II/I
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Two-post foldable ROPS
Starter Type: Electric
Brake Type: Mechanical wet disc
Hydraulic System Type: Open center
